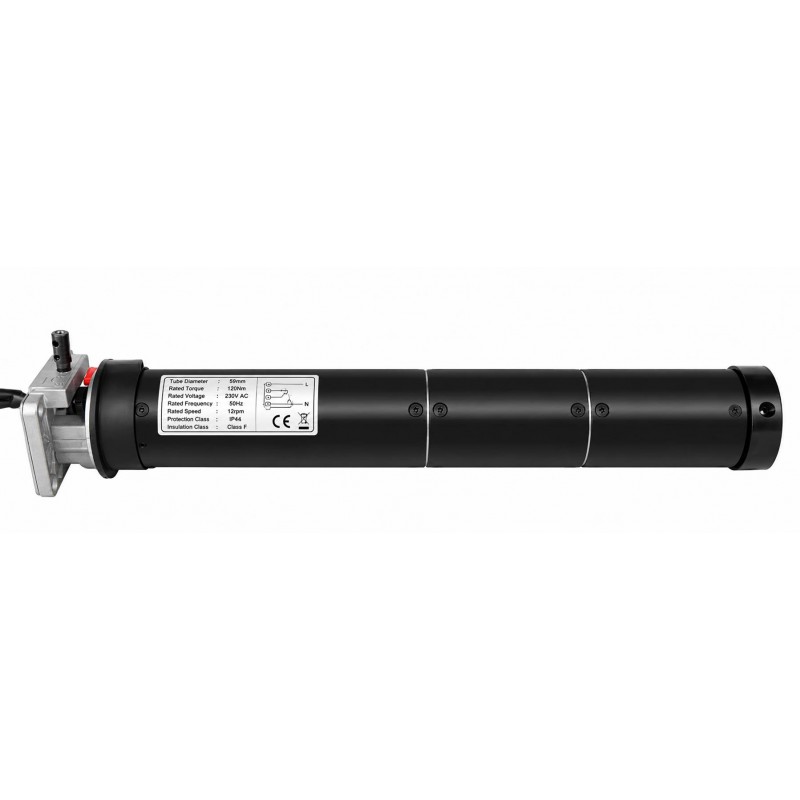

Tubular Motor 59mm 140Nm UAE

Heavy-Duty 59mm Rolling Shutter Tubular Motor Supplier in UAE

The Tubular Motor 59mm 140Nm is a powerful and professional automation solution designed for heavy-duty rolling shutters, industrial roller doors, large roller blinds, awnings, and commercial automation systems. Engineered for stable performance and long service life, this motor delivers smooth, reliable, and efficient operation for demanding applications across Dubai, Sharjah, Abu Dhabi, and throughout the UAE.

With an impressive torque output of 140Nm and a robust 59mm tube diameter, this motor is ideal for larger and heavier roller shutter installations requiring increased lifting power and durability. Its heavy-duty design ensures consistent performance under frequent operating cycles while maintaining smooth and controlled movement.

Built with Class H insulation and IP44 protection, the motor offers superior resistance to heat and demanding environmental conditions, making it suitable for UAE commercial and industrial installations.

Main Features

• Heavy-duty 59mm tubular motor
• 140Nm rated torque output
• Smooth and reliable operation
• Designed for heavy rolling shutter systems
• Stable performance and long service life
• Built-in thermal protection
• Class H insulation for enhanced durability
• IP44 environmental protection
• Low maintenance requirements
• Easy installation and integration

Technical Specifications

• Product Type: Tubular Motor
• Tube Diameter: 59mm
• Rated Torque: 140Nm
• Rated Voltage: 230V AC
• Rated Frequency: 50Hz
• Rated Power Input: 380W
• Rated Current: 1.68A
• Running Time: S2 4 Minutes
• Rated Speed: 10 RPM
• Protection Index: IP44
• Insulation Class: Class H

Applications

• Rolling Shutters
• Industrial Roller Doors
• Commercial Roller Shutters
• Warehouse Shutters
• Shop Front Shutters
• Security Roller Doors
• Heavy-Duty Roller Blinds
• Automated Awning Systems

Benefits

• High lifting capacity for heavy shutters
• Smooth and controlled movement
• Reliable daily operation
• Suitable for commercial and industrial use
• Excellent durability and performance
• Resistant to UAE weather conditions
• Low maintenance costs
• Long operational lifespan

Package Includes

• 1 × Tubular Motor 59mm 140Nm
• Motor Adaptor Set
• Mounting Brackets
• User Manual

Why Choose Tubular Motor 59mm 140Nm UAE?

• Powerful 140Nm torque output
• Heavy-duty commercial-grade design
• Reliable and stable performance
• Class H insulation for extended durability
• IP44 environmental protection
• Suitable for large rolling shutters
• Easy installation and operation
• Ideal for UAE commercial and industrial projects

Frequently Asked Questions

What is this motor used for?

The motor is designed for heavy-duty rolling shutters, industrial roller doors, warehouse shutters, and commercial automation systems.

What is the torque rating?

The motor provides 140Nm rated torque for demanding applications.

What is the tube diameter?

The motor is designed for standard 59mm tube systems.

Is it suitable for industrial installations?

Yes. The 140Nm torque output makes it ideal for commercial and industrial roller shutter applications.

What is the operating speed?

The motor operates at 10 RPM, providing powerful and controlled movement for heavy shutters.
