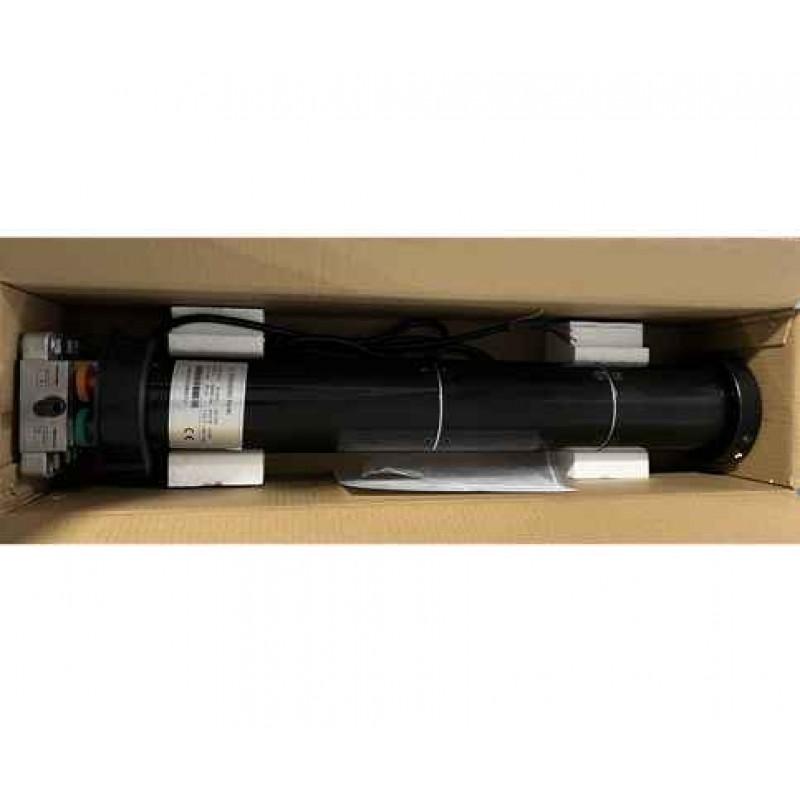

Tubular Motor 92mm 330Nm UAE

Industrial Heavy-Duty 92mm Rolling Shutter Tubular Motor Supplier in UAE

The Tubular Motor 92mm 330Nm is an industrial-grade automation solution engineered for very large rolling shutters, warehouse roller doors, factory entrances, security shutters, loading bay doors, and heavy-duty commercial applications. Designed for maximum lifting power and exceptional durability, this motor delivers smooth, reliable, and efficient operation across Dubai, Sharjah, Abu Dhabi, and throughout the UAE.

With a powerful torque output of 330Nm and a heavy-duty 92mm tube diameter, this motor is ideal for oversized roller shutter systems that require superior lifting force and dependable daily performance. Its robust construction ensures stable operation under intensive usage while maintaining smooth and controlled movement.

Built with Class H insulation and IP44 protection, the motor is designed to perform reliably under harsh UAE conditions including high temperatures, dust, humidity, and demanding industrial environments.

Main Features

• Heavy-duty 92mm tubular motor
• 330Nm rated torque output
• Industrial-grade performance
• Smooth and stable operation
• Designed for extra-large rolling shutter systems
• Reliable long-term operation
• Built-in thermal protection
• Class H insulation for maximum durability
• IP44 environmental protection
• Low maintenance requirements

Technical Specifications

• Product Type: Tubular Motor
• Tube Diameter: 92mm
• Rated Torque: 330Nm
• Rated Voltage: 230V AC
• Rated Frequency: 50Hz
• Rated Power Input: 830W
• Rated Current: 3.80A
• Running Time: S2 4 Minutes
• Rated Speed: 9 RPM
• Protection Index: IP44
• Insulation Class: Class H

Applications

• Industrial Rolling Shutters
• Factory Entrances
• Warehouse Roller Doors
• Loading Bay Doors
• Commercial Security Shutters
• Industrial Buildings
• Logistics Centers
• Heavy-Duty Commercial Installations

Benefits

• Exceptional lifting power for large shutters
• Smooth and controlled operation
• Reliable industrial-grade performance
• Designed for intensive daily use
• Suitable for UAE climate conditions
• Long operational lifespan
• Low maintenance costs
• Enhanced durability with Class H insulation

Package Includes

• 1 × Tubular Motor 92mm 330Nm
• Motor Adaptor Set
• Mounting Brackets
• User Manual

Why Choose Tubular Motor 92mm 330Nm UAE?

• Powerful 330Nm torque output
• Industrial-grade construction
• Reliable and stable performance
• Large 92mm tube compatibility
• Class H insulation for extended service life
• IP44 environmental protection
• Suitable for heavy-duty industrial projects
• Ideal for UAE commercial and industrial installations

Frequently Asked Questions

What is this motor used for?

The motor is designed for industrial rolling shutters, warehouse doors, factory entrances, loading bay doors, and heavy-duty commercial roller shutter systems.

What is the torque rating?

The motor provides 330Nm rated torque for very large and heavy roller shutter applications.

What is the tube diameter?

The motor is designed for 92mm tube systems.

Is it suitable for industrial applications?

Yes. The 330Nm torque output makes it ideal for industrial and commercial installations requiring high lifting capacity.

What is the operating speed?

The motor operates at 9 RPM, providing powerful and controlled movement for oversized roller shutter systems.
