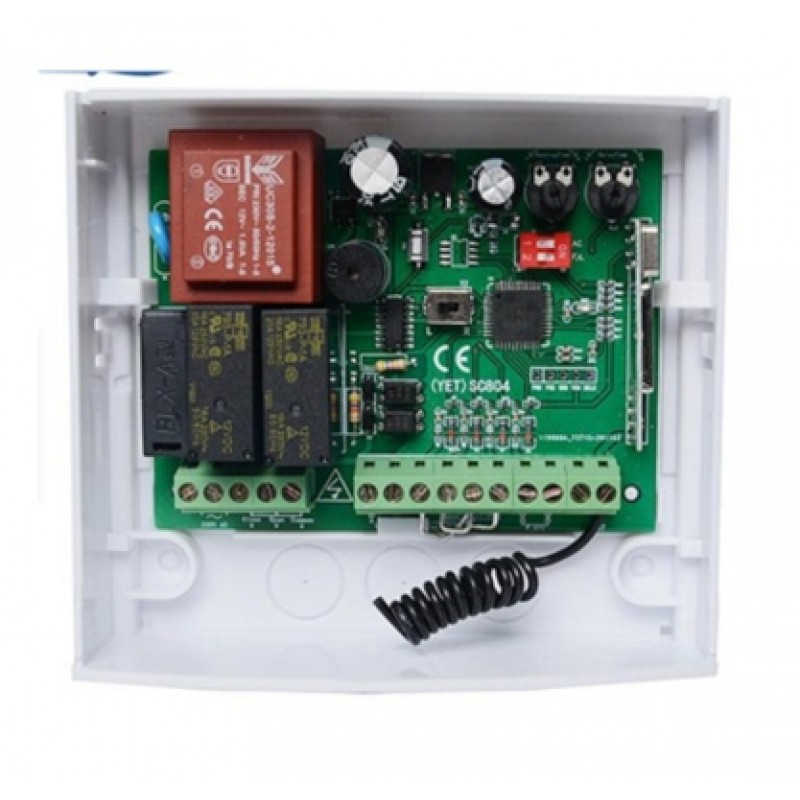

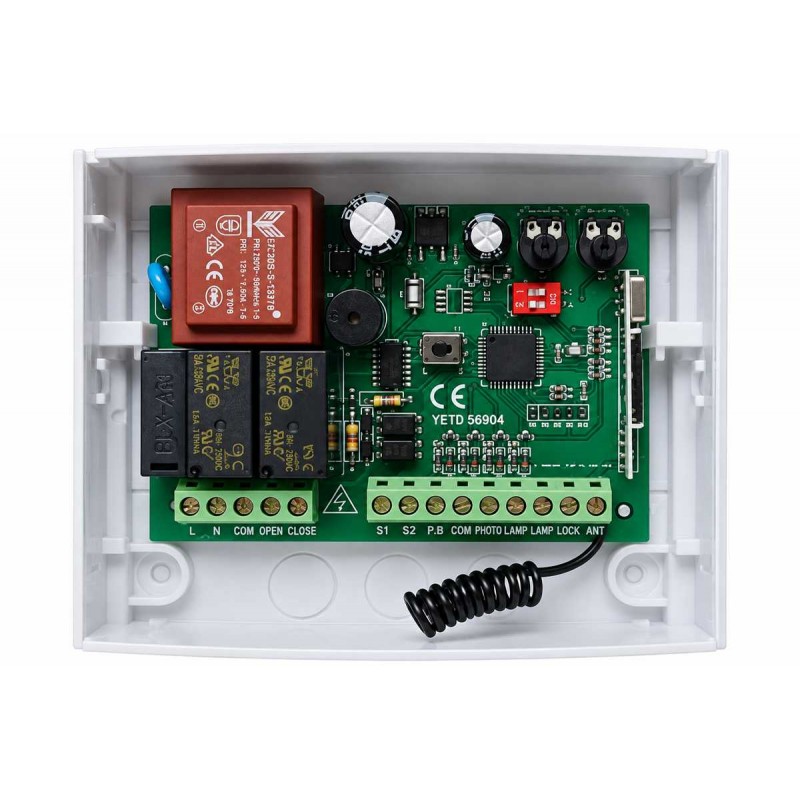

Smart Control Board for Rolling Shutter Tubular Motors
The Rolling Shutter Tubular Motor Controller is an advanced control board specifically designed for electric rolling shutters, garage doors, shop shutters, warehouse entrances, and automated door systems. It provides intelligent motor management with adjustable operating parameters, enhanced safety functions, and reliable wireless remote control operation.
This controller supports stroke setting, automatic closing with adjustable delay, obstacle detection, over-current protection, photocell safety integration, and limit switch functionality. Designed for smooth and efficient operation, it is ideal for residential, commercial, and industrial installations throughout Dubai, Sharjah, Abu Dhabi, and across the UAE.
With support for 433.92MHz remote controls and multiple safety features, the controller offers secure, convenient, and dependable operation for modern rolling shutter automation systems.
Main Features
- Dedicated controller for rolling shutter tubular motors
- 433.92MHz wireless remote control operation
- Automatic closing with adjustable delay timer
- Obstacle detection and automatic reopening function
- Over-current protection
- Photocell safety sensor compatibility
- Limit switch support
- Adjustable motor running time
- Manual wall switch compatibility
- Easy programming and setup
Technical Specifications
- Working Voltage: 220V AC
- Output Voltage: 220V AC
- Working Frequency: 433.92MHz
- Remote Control Type: 433MHz 1527
- Memory Capacity: Up to 30 Remote Controls
- Maximum Running Time: 120 Seconds
- Auto Close Delay Time: 5–120 Seconds
- Running/Journey Time Setting: 0–120 Seconds
- Controller Output: +12V DC VCC Terminal
- Signal Input Voltage: 5V
Safety Functions
- Obstacle detection and automatic reopening
- Over-current monitoring and protection
- Photocell safety integration
- Motor running time protection
- Automatic stop function
- Limit switch management
DIP Switch Functions
- DIP Switch 1: Auto-Close Delay Function
- ON = Auto-Close Enabled
- OFF = Auto-Close Disabled
- DIP Switch 2: Close Momentary Function
- ON = Momentary Mode Enabled
- OFF = Momentary Mode Disabled
Applications
- Rolling Shutters
- Garage Doors
- Shop Front Shutters
- Commercial Entrances
- Warehouse Doors
- Industrial Roller Shutters
- Storage Facilities
- Automated Access Systems
Benefits
- Enhanced operational safety
- Convenient wireless control
- Adjustable automation settings
- Reliable motor protection
- Easy installation and programming
- Supports multiple remote controls
- Improved security and convenience
- Suitable for UAE climate conditions
Package Includes
- 1 × Rolling Shutter Tubular Motor Controller
- Built-in Radio Receiver
- Installation Manual
- Wiring Instructions
Why Choose This Rolling Shutter Controller?
- Advanced automation functions
- Reliable wireless remote operation
- Photocell safety integration
- Obstacle detection technology
- Supports up to 30 remote controls
- Easy installation and configuration
- Suitable for residential and commercial use
- Professional shutter automation solution
Frequently Asked Questions
How many remote controls can be programmed?
The controller can store up to 30 remote controls.
Does it support photocell safety sensors?
Yes. The controller supports photocell integration for enhanced safety.
Can the auto-close time be adjusted?
Yes. The auto-close delay can be adjusted between 5 and 120 seconds.
What frequency do the remotes operate on?
The controller works with 433.92MHz remote controls using 1527 coding.
Is it suitable for garage doors and rolling shutters?
Yes. It is designed for rolling shutters, garage doors, and other electric door automation systems.
