Heavy-Duty 1500KG Industrial Roller Shutter Motor for Commercial Applications
The AC 1500KG Rolling Shutter Motor is a powerful industrial automation solution designed for extra-heavy roller shutter doors used in warehouses, factories, shopping malls, logistics centers, commercial buildings, banks, garages, and industrial facilities. With an impressive lifting capacity of up to 1500kg and a high output torque of 1617Nm, this motor delivers exceptional performance, reliability, and safety for demanding applications across Dubai, Sharjah, Abu Dhabi, and throughout the UAE.
Manufactured using advanced technology and high-quality engineering components, the AC 1500KG shutter motor is built for continuous operation, long service life, and maximum security. Its heavy-duty design ensures smooth lifting performance while minimizing wear and maintenance requirements.
Equipped with overload protection, overheating protection, anti-fall safety mechanisms, and manual override functionality, this motor provides reliable operation even under intensive daily use and challenging UAE weather conditions.
Key Features
- Maximum lifting capacity up to 1500kg
- Heavy-duty 1617Nm output torque
- Advanced overload protection system
- Overheat protection for motor safety
- Anti-fall protection device
- Manual operation during power failure
- Accurate and adjustable limit switch system
- Low-noise operation
- Easy installation and adjustment
- Long service life and durable construction
Technical Specifications
- Motor Type: AC Rolling Shutter Motor
- Maximum Lifting Capacity: 1500kg
- Rated Voltage: 220V
- Frequency: 50Hz
- Input Power: 1250W
- Rated Output Torque: 1617Nm
- Rated Current: 3.8A
- Output Speed: 5.2 r/min
- Maximum Lifting Height: 8m
- Continuous Working Time: 15 Minutes
- Operating Temperature: -20°C to +50°C
Applications
- Industrial Warehouses
- Factory Roller Shutters
- Shopping Malls
- Retail Stores
- Banks and Financial Facilities
- Commercial Buildings
- Logistics and Distribution Centers
- Large Garage Doors
- Industrial Storage Facilities
- Heavy-Duty Roller Shutters
Safety Features
- Built-in overload protection
- Motor overheating protection
- Anti-fall safety device
- Manual emergency operation
- Precision limit switch adjustment
- Enhanced operational safety
Benefits
- Handles shutters up to 1500kg
- Reliable performance for industrial applications
- Smooth and stable shutter movement
- Reduced maintenance costs
- Long operational lifespan
- Excellent durability under heavy use
- Suitable for continuous daily operation
- Built for UAE environmental conditions

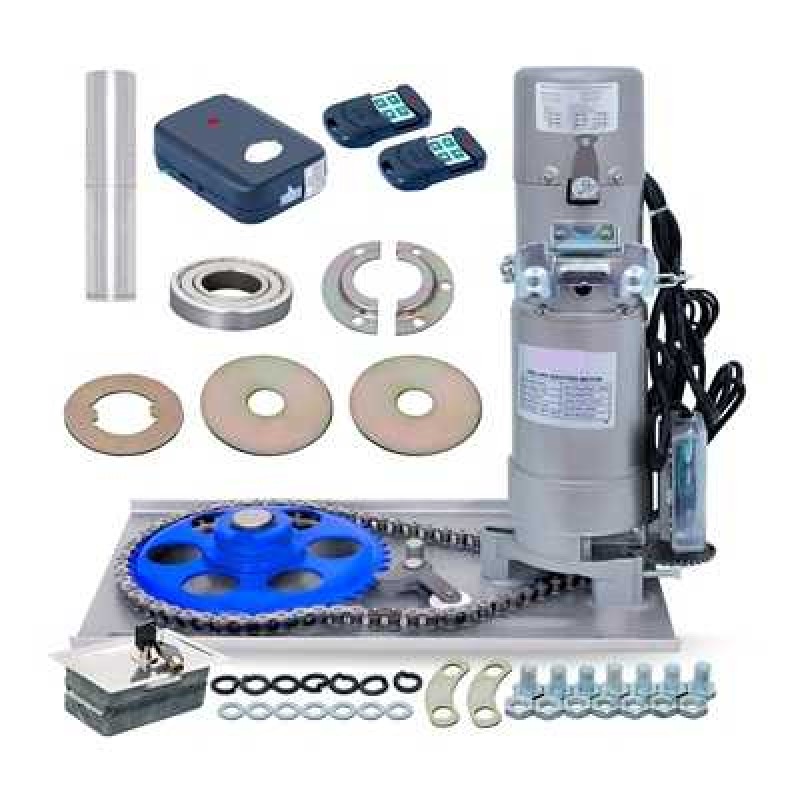

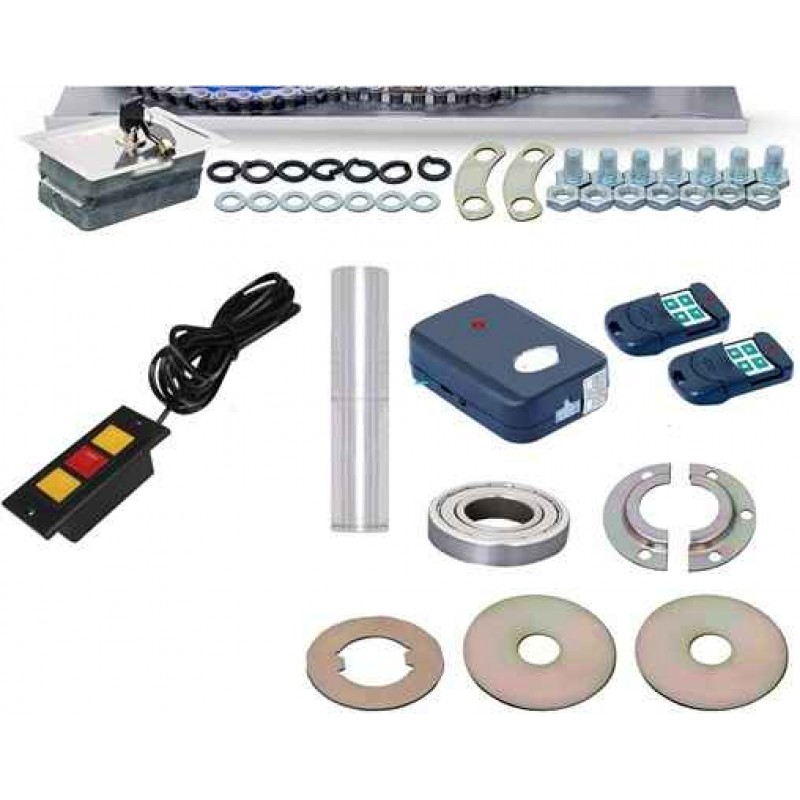

Package Includes
- 1 × AC 1500KG Rolling Shutter Motor
- Motor Mounting Accessories
- Manual Override System
- Limit Switch Assembly
- User Manual
Why Choose the AC 1500KG Rolling Shutter Motor?
- Heavy-duty 1500kg lifting capacity
- Powerful 1617Nm output torque
- Industrial-grade reliability
- Advanced safety protection systems
- Easy installation and maintenance
- Designed for intensive commercial use
- Excellent performance in UAE climate
- Professional support available across UAE
Frequently Asked Questions
What is the lifting capacity of this motor?
The AC Rolling Shutter Motor can lift roller shutters weighing up to 1500kg.
Is this motor suitable for industrial roller shutters?
Yes. It is specifically designed for factories, warehouses, shopping malls, industrial facilities, and heavy-duty commercial shutters.
Does the motor include safety protection features?
Yes. It includes overload protection, overheating protection, anti-fall protection, and manual override operation.
Can the shutter be operated during a power outage?
Yes. The motor includes a manual operation mechanism for emergency use during power failures.
Is this motor suitable for UAE weather conditions?
Yes. The motor is engineered to operate reliably in UAE heat, humidity, dust, and demanding industrial environments.
