ROGER R20/510 Swing Gate Motor in UAE

ROGER R20/510 Swing Gate Motor up to 3.5m in UAE

• KIT R20/510
• KIT Electromechanical actuator 230V AC
• Irreversible ideal for swing gates with leaf up to 3,5 m
• complete with fixing plates.

Technical features:

• Power line supply : 230V AC - 50Hz
• Motor power supply : 230V AC
• Power rating : 200W
• Frequency of use : 40%
• Thrust : 2500 N
• Operating temperature : -20+55°C
• Protection level : IP44
• Reductor Type : Irreversible
• Manoeuvre speed : 1,66 cm/s
• Opening time : 27 s
• Stroke : 520 mm
• Motor thermal protection : 150°C
• Incorporated condenser : 15 µF
• Limit switch : Microswitch in opening (optional in closing)
• Encoder : -
• Maximum dimension product in mm (L x W x H) : 1088,5 x 120 x 165
• Product weight packed (Kg) : 23,6.

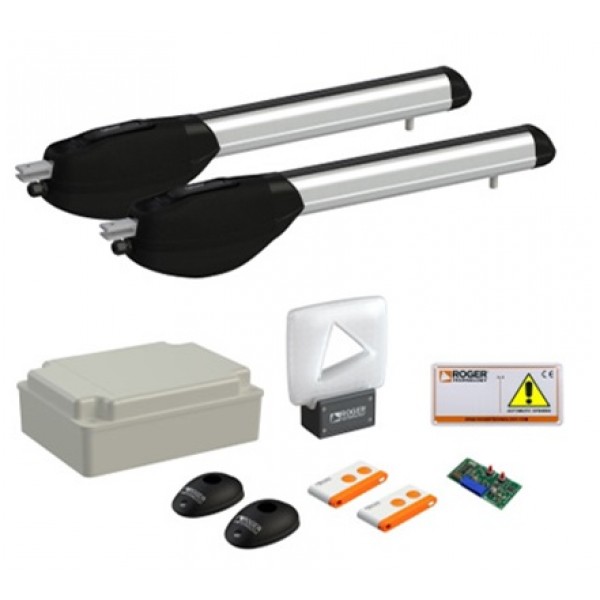

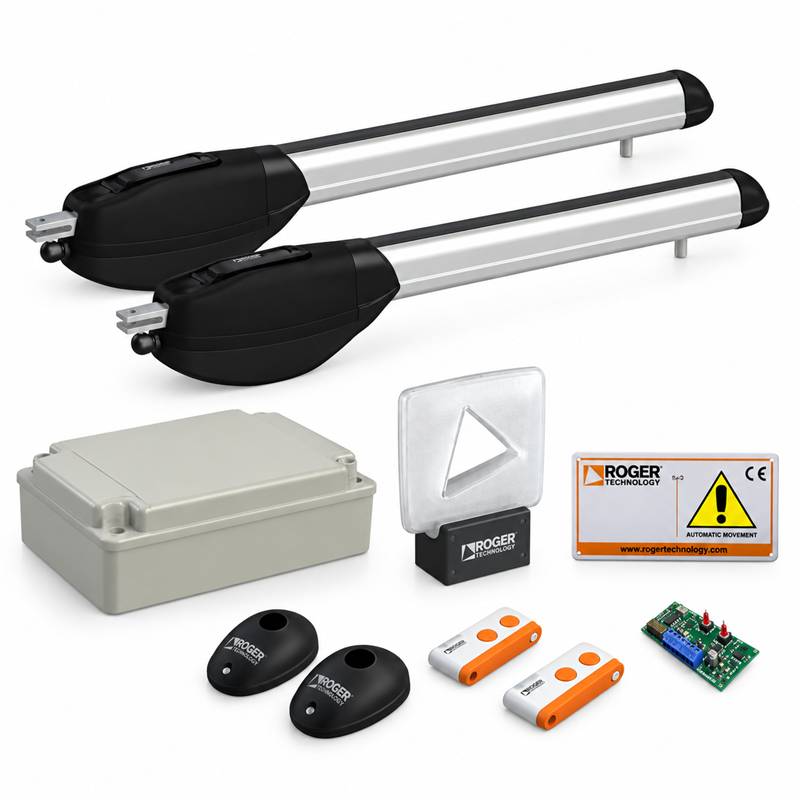

ROGER R20/310 Kit Contains:

• 2 x R20/500 Electromechanical swing gate with leaf up to 3,5 m.
• 1 x  H70/200AC/BOX Control unit for 2 motors 230V AC with slow down.
• 1 x H93/RX22A/I Plug-in receiver 2 channels 433,92 Mhz.
• 1 x T80/TX2 Dual code transmitter.
• 1 x R90/F2ES Pair of external photocells synchronized.
• 1 x FIFTHY/230 LED flashing light.
• 1 x R99/C/001 Signboard "Automatic Opening.
