Safety Beam Sensors for Automatic Gate & Barrier Automation Systems

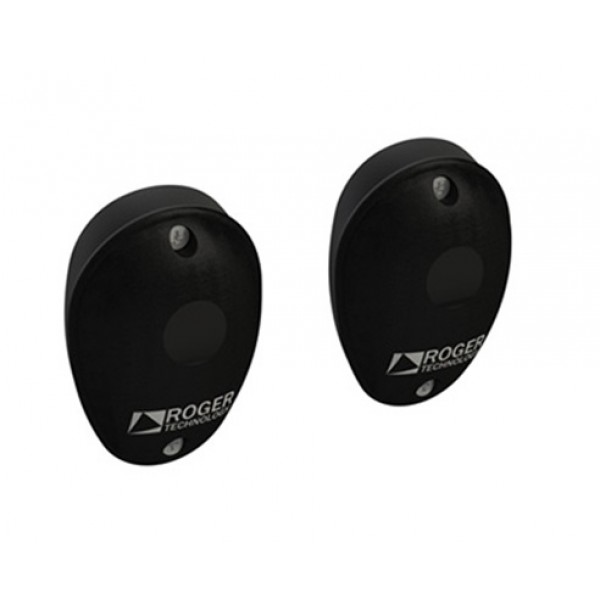

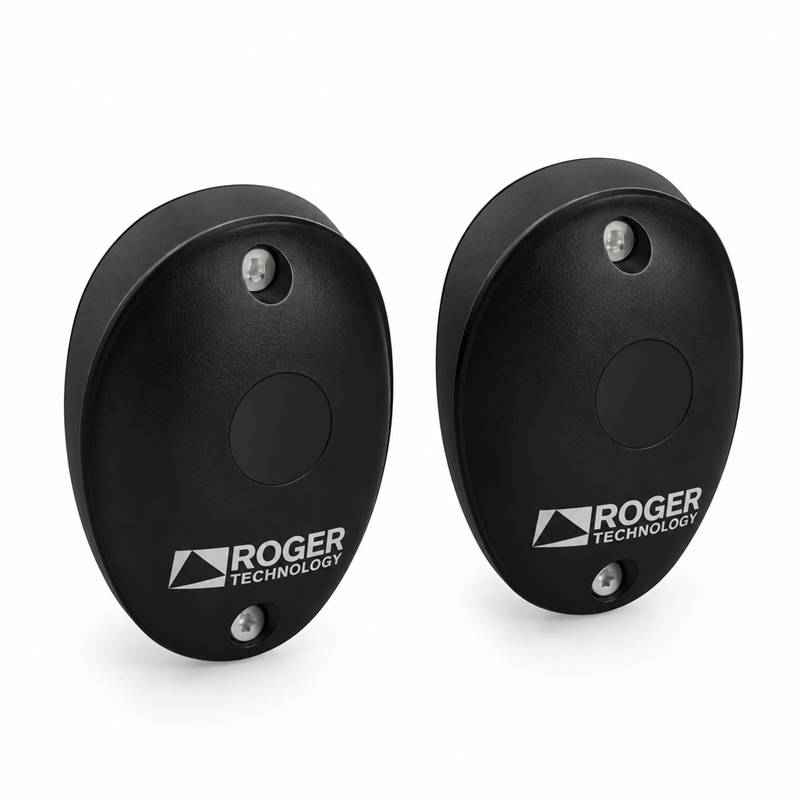

The ROGER R90/F2ES Photocell Sensors are premium Italian-made safety beam sensors designed for automatic gate motors, garage door openers, parking barriers, and access automation systems across UAE.
Engineered using advanced ROGER automation technology, the R90/F2ES photocells provide reliable obstacle detection and enhanced operational safety for residential, commercial, and industrial automation systems.
The infrared safety beam system automatically detects vehicles, pedestrians, or obstacles within the gate operating area and sends safety signals to the automation control board to prevent accidents and collisions.
The ROGER R90/F2ES sensors support synchronized operation and provide dependable signal transmission with stable performance for automatic gate safety applications.
Designed for external installation, the photocell sensors feature IP55 weather protection, making them suitable for harsh UAE outdoor environments including heat, dust, humidity, and continuous exposure.
The compact and modern design allows easy installation while maintaining professional appearance and reliable automation safety performance.
The ROGER R90/F2ES photocells are ideal for sliding gate motors, swing gate motors, parking gate barriers, garage doors, industrial entrances, compounds, villas, warehouses, and commercial automation systems.
Suitable for installations across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain, Al Ain, and across UAE.
ROGER R90/F2ES Features
- Infrared safety beam photocell sensors
- Reliable obstacle detection system
- Suitable for automatic gate automation
- External installation design
- IP55 weather protection
- Synchronization support
- Stable long-term operation
- Compact and modern construction
- Professional automation safety accessory
- Made in Italy quality
Applications
- Sliding gate motors
- Swing gate motors
- Garage door openers
- Parking gate barriers
- Automatic access control systems
- Residential gate automation
- Commercial entrances
- Industrial automation systems
ROGER R90/F2ES Technical Features
- Model: R90/F2ES
- Brand: ROGER
- Device Type: Photocell Safety Sensors
- Power Supply: 12/24V AC 50Hz - 12/24V DC
- Current Absorption: TX 19mA - RX 20mA
- Operating Temperature: -20°C to +55°C
- Protection Rating: IP55
- Maximum Detection Distance: 10 - 15 Meters
- Maximum Number of Synchronized Photocells: 2
- Relay Contact Maximum Current: 0.5A RX
- Relay Contact Maximum Voltage: 30V
- Installation Type: External
- Dimensions: 62 × 88 × 27 mm
- Packed Weight: 0.1 KG
- Country of Origin: Italy
Compatible Systems
- ROGER Sliding Gate Motors
- ROGER Swing Gate Motors
- Garage Door Openers
- Parking Gate Barriers
- Automatic Gate Automation Systems
- Access Control Systems
Why Choose ROGER R90/F2ES UAE?
- Original Italian-made safety sensors
- Reliable obstacle detection technology
- IP55 outdoor weather protection
- Stable synchronized operation
- Compact and durable construction
- Compatible with automation systems
- Available across UAE with support
Frequently Asked Questions
What are ROGER R90/F2ES Photocell Sensors used for?
ROGER R90/F2ES photocells are used for obstacle detection and safety protection in automatic gate and barrier automation systems.
What is the detection range of the photocells?
The ROGER R90/F2ES photocells provide a detection range of approximately 10 to 15 meters.
Are the photocells suitable for outdoor use?
Yes, the sensors feature IP55 protection and are designed for outdoor operation in UAE weather conditions.
Can the photocells be synchronized?
Yes, the ROGER R90/F2ES supports synchronization of up to 2 photocell sets.
Is installation available in UAE?
Yes, professional installation and automation support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Al Ain, Fujairah, Umm Al Quwain, and across UAE.
