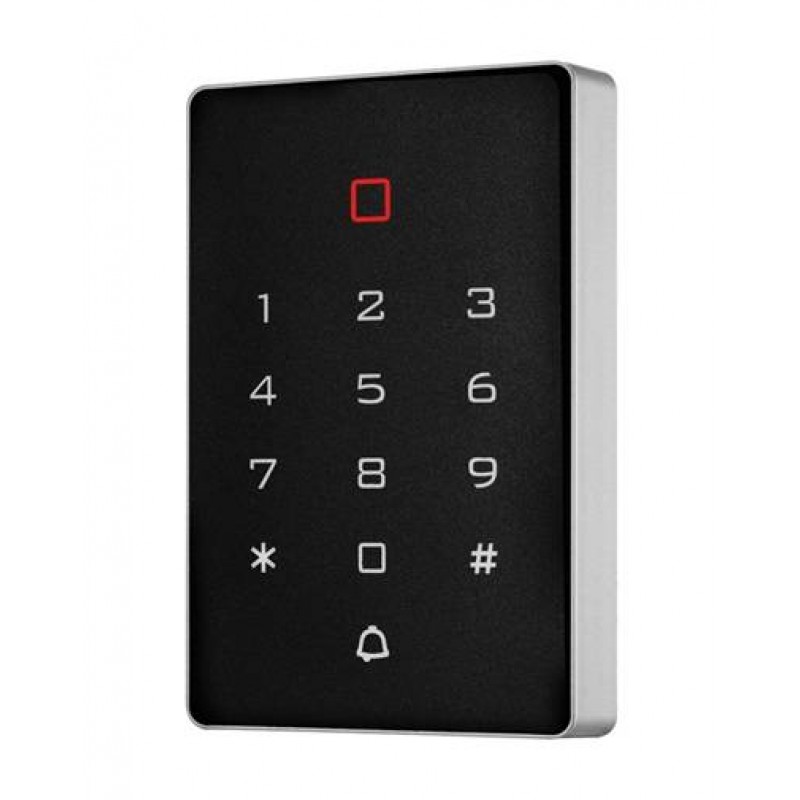

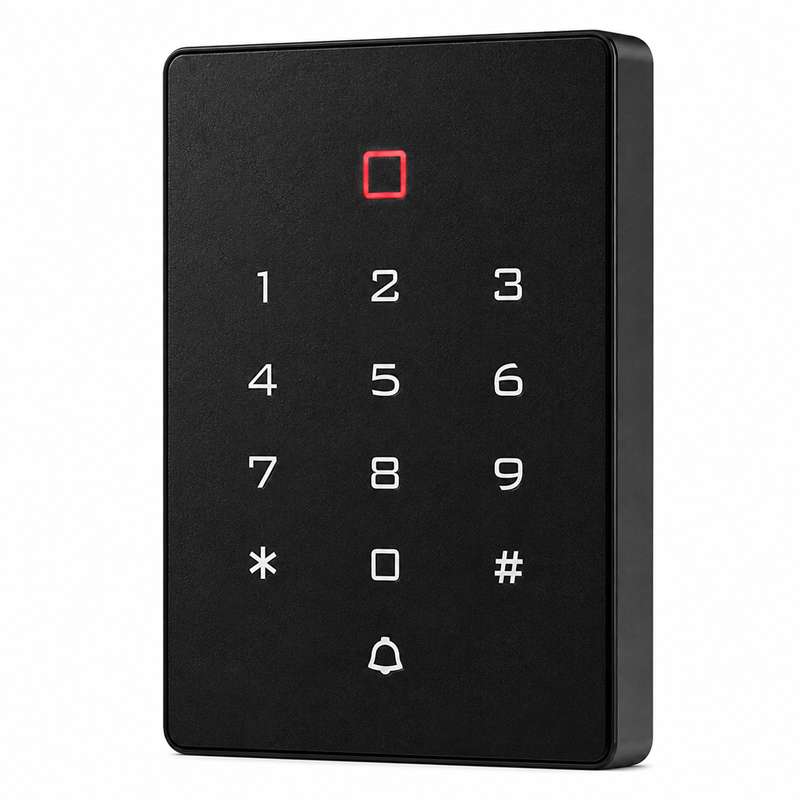

Standalone RFID Keypad Access Control System with WG26 & WG34 Support
The RFID Standalone Access Control Keypad is a professional security solution designed for residential, commercial, and industrial access control applications throughout Dubai, Sharjah, Abu Dhabi, and across the UAE. Combining RFID card access and PIN code authentication in a single compact device, it provides secure and convenient door entry management without requiring a separate access controller.
Supporting up to 2000 users, this standalone access control keypad offers flexible verification methods including RFID card, PIN code, and card plus password combination unlocking. Its built-in relay output allows direct connection to electric locks, magnetic locks, automatic doors, gates, and access control systems.
The keypad supports both Wiegand 26 and Wiegand 34 input/output communication, enabling seamless integration with existing security systems, access control panels, attendance systems, and building management platforms.
Built for reliability and long-term performance, the device operates in extreme temperatures and harsh environments, making it suitable for indoor and outdoor installations throughout the UAE.
Key Features
- Standalone RFID access control system
- Supports up to 2000 users
- RFID card and PIN code authentication
- Card + Password dual verification mode
- WG26 and WG34 communication support
- Built-in relay output
- Adjustable door relay time
- Ultra-low standby power consumption
- External doorbell support
- Easy installation and programming
Verification Methods
- RFID Card Access
- PIN Password Access
- Card + Password Combination Unlock
Technical Specifications
- Product Type: RFID Standalone Access Control Keypad
- User Capacity: 2000 Users
- Card Type: EM RFID Card
- Reading Distance: 1~5cm
- Working Voltage: DC12~24V
- Standby Current: ≤30mA
- Relay Output Load: ≤3A
- Unlock Time: 5 Seconds
- Door Relay Time: 0~99 Seconds Adjustable
- Programming Password: 999999
Communication Interfaces
- Wiegand 26 Input/Output
- Wiegand 34 Input/Output
- External Doorbell Interface
Environmental Specifications
- Operating Temperature: -40°C to +60°C
- Working Humidity: 10% to 90%
- Suitable for Indoor and Outdoor Installations
- Industrial Grade Performance
Physical Specifications
- Dimensions: 115 × 75 × 18 mm
- Compact Slim Design
- Easy Wall Mount Installation
Applications
- Office Access Control
- Residential Villas
- Apartment Buildings
- Commercial Buildings
- Warehouses
- Industrial Facilities
- Server Rooms
- Staff Entrances
- Automatic Door Systems
- Restricted Access Areas
Benefits
- No separate controller required
- Large 2000-user capacity
- Multiple authentication methods
- Low power consumption
- Easy installation and maintenance
- Flexible integration with existing systems
- Reliable operation in UAE climate
- Cost-effective security solution
Package Includes
- 1 × RFID Standalone Access Control Keypad
- Mounting Accessories
- Connection Guide
- User Manual
Why Choose This RFID Access Control Keypad?
- Supports 2000 users
- Card and PIN authentication
- WG26 and WG34 compatibility
- Ultra-low standby power consumption
- Built-in relay control
- Easy installation and programming
- Suitable for residential and commercial use
- Professional support available across UAE
Frequently Asked Questions
How many users can be stored?
The keypad supports up to 2000 users.
Which card types are supported?
The system supports 125KHz EM RFID cards.
Can users unlock using both card and password?
Yes. The keypad supports card-only, password-only, and card plus password authentication modes.
Does it support Wiegand communication?
Yes. The keypad supports both WG26 and WG34 input and output communication.
Can it directly control an electric lock?
Yes. The built-in relay output supports direct connection to electric locks, magnetic locks, automatic doors, and access control systems.
