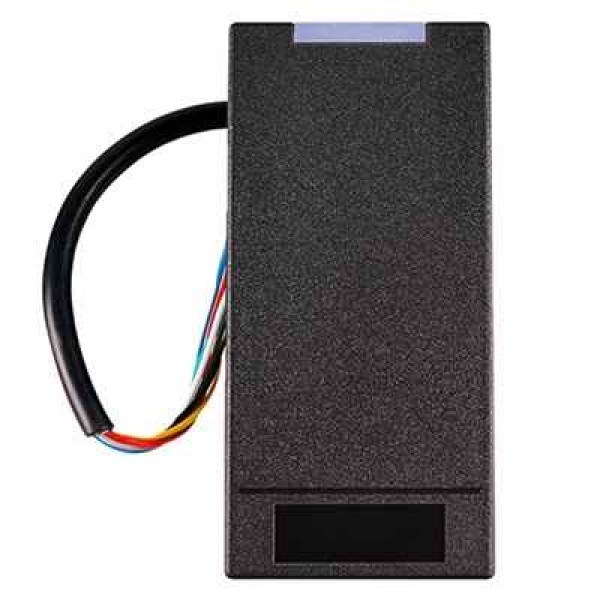

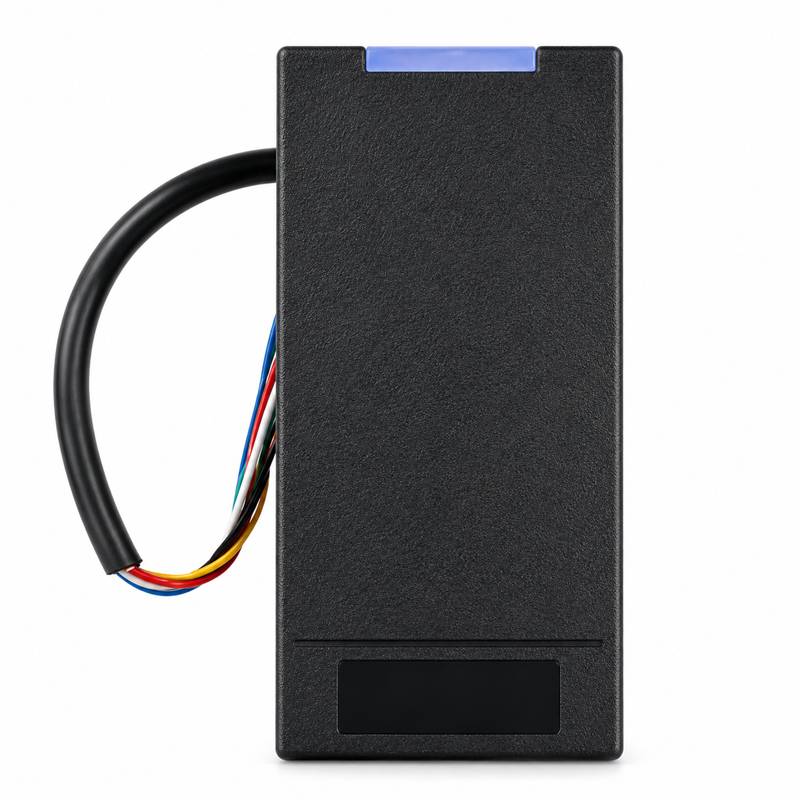

Professional RFID Card Reader for Access Control & Security Systems
The Waterproof Access Control Wiegand RFID Card Reader is a professional identification device designed for access control systems, office buildings, residential communities, warehouses, parking facilities, and industrial applications throughout Dubai, Sharjah, Abu Dhabi, and across the UAE.
Supporting both 125KHz EM cards and 13.56MHz IC cards, this RFID reader delivers fast and reliable card recognition with a sensing distance of up to 15cm. Its compact design and multiple communication interfaces make it suitable for integration with access control panels, security systems, attendance systems, and gate automation solutions.
The PCD-96A EM version supports 125KHz RFID cards and offers flexible communication options including RS232, TTL, RS485 Active Mode, and RS485 Passive Mode, ensuring compatibility with a wide range of access control and building management systems.
Built with durable PVC housing and designed for outdoor environments, the reader operates reliably under harsh UAE weather conditions including heat, humidity, and dust exposure.
Key Features
- Supports 125KHz EM cards and 13.56MHz IC cards
- Fast card recognition under 0.2 seconds
- Reading distance up to 15cm
- Multiple communication interfaces
- Low power consumption design
- Durable PVC housing
- Reliable outdoor operation
- Easy integration with access control systems
- Compact and professional design
- Suitable for residential and commercial projects
Technical Specifications
- Model: PCD-96A EM
- Card Type: EM Card / IC Card
- Working Frequency: 125KHz or 13.56MHz
- Sensing Distance: 0~15cm
- Card Reading Speed: Less than 0.2 Seconds
- Operating Voltage: DC5~16V
- Working Current: Less than 25mA
- Operating Temperature: -30°C to +85°C
- Operating Humidity: 10%~90%
- Housing Material: PVC
Communication Interfaces
- RS232
- TTL
- RS485 Active Mode
- RS485 Passive Mode
Supported Card Types
- 125KHz EM RFID Cards
- 13.56MHz IC Cards
- Access Control Cards
- Employee Identification Cards
- Visitor Access Cards
Applications
- Door Access Control Systems
- Office Buildings
- Residential Communities
- Apartment Buildings
- Commercial Properties
- Industrial Facilities
- Parking Access Systems
- Attendance Management Systems
- Automatic Gates
- Security Management Systems
Benefits
- Fast and accurate card recognition
- Supports multiple RFID technologies
- Reliable communication options
- Easy installation and integration
- Low power consumption
- Long operating lifespan
- Suitable for UAE weather conditions
- Professional-grade access control performance
Package Includes
- 1 × Waterproof RFID Card Reader
- Connection Cable
- Mounting Accessories
- User Manual
Why Choose This RFID Card Reader?
- Supports EM and IC RFID cards
- Fast response time under 0.2 seconds
- Up to 15cm reading distance
- Multiple communication protocols
- Reliable outdoor operation
- Low power consumption
- Industrial-grade durability
- Professional support available across UAE
Frequently Asked Questions
Which RFID card types are supported?
The reader supports 125KHz EM cards and 13.56MHz IC cards depending on the selected model.
What is the maximum card reading distance?
The reader can detect RFID cards from distances up to 15cm.
Which communication interfaces are available?
The reader supports RS232, TTL, RS485 Active Mode, and RS485 Passive Mode communication.
Can it be installed outdoors?
Yes. The reader is suitable for outdoor access control installations and harsh UAE environmental conditions.
Is it compatible with access control systems?
Yes. The reader is designed for integration with access control panels, security systems, attendance systems, and automation platforms.
