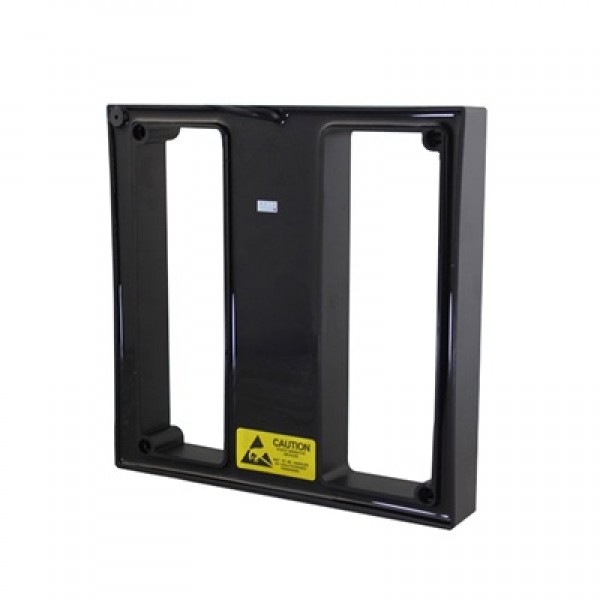

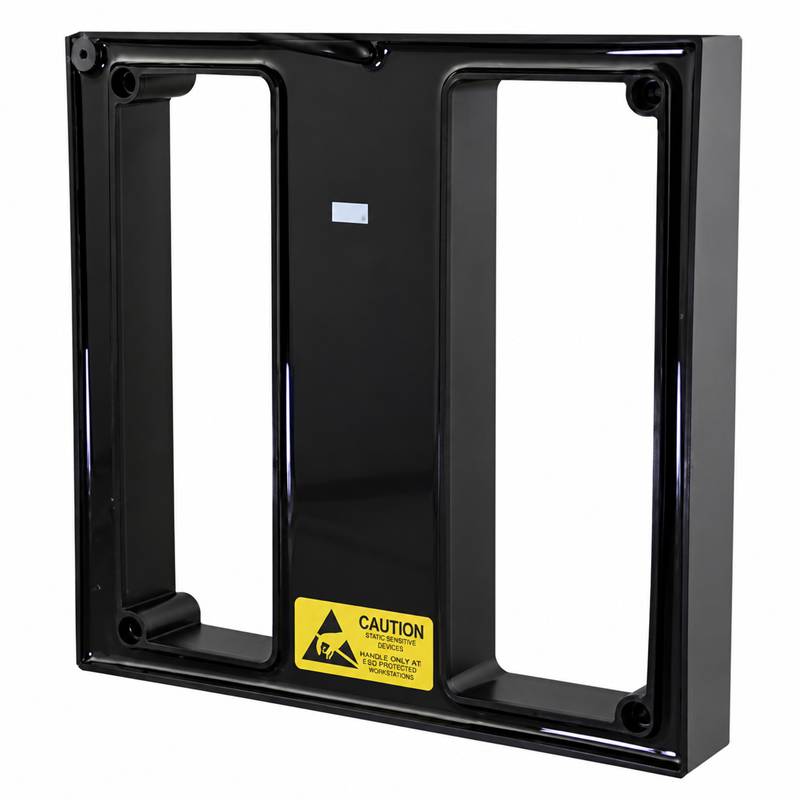

125KHz Mid-Range RFID Proximity Card Reader for Access Control Systems
The RFID 100CM Mid-Range Reader is a professional access control reader designed for secure identification and entry management in residential, commercial, and industrial environments. Operating at 125KHz, this RFID proximity card reader delivers reliable card detection from distances of up to 100cm, making it ideal for vehicle gates, parking systems, staff entrances, warehouses, and building access control systems throughout Dubai, Sharjah, Abu Dhabi, and across the UAE.
Compatible with EM ID cards and 125KHz proximity cards, the reader offers fast response times, stable performance, and easy integration with access control panels through Wiegand communication protocols. Its built-in antenna, buzzer, speaker, and LED indicators provide clear operational feedback and dependable identification performance.
Designed with an IP67 waterproof enclosure and durable ABS housing, this RFID reader is suitable for both indoor and outdoor installations, ensuring long-term reliability even in harsh UAE weather conditions.
Key Features
- Mid-range RFID reading up to 100cm
- 125KHz proximity card technology
- Supports EM ID cards and compatible cards
- Fast card recognition speed
- Wiegand communication output
- Built-in antenna and buzzer
- LED status indicators
- IP67 waterproof protection
- Suitable for indoor and outdoor use
- Easy integration with access control systems
Technical Specifications
- Frequency: 125KHz
- Supported Cards: EM ID Cards & Compatible Cards
- Reading Distance: 65–105cm
- Interface: Wiegand 26 / 34 / 42 Bit
- Communication: Wiegand 26 / Wiegand 34
- Operating Voltage: DC 9~12V
- Current Consumption: Less than 50mA
- Reader Speed: Less than 0.2 Seconds
- Punch Interval: Less than 0.5 Seconds
Environmental Specifications
- Operating Temperature: -25°C to +85°C
- Humidity Range: 10% to 90%
- Protection Rating: IP67 Waterproof
- Suitable for Outdoor Installation
Physical Specifications
- Dimensions: 230 × 230 × 35 mm
- Housing Material: ABS Engineering Plastic
- Color: Black
- Built-in Antenna
- Built-in Speaker & Buzzer
- Red, Blue & Green LED Indicators
Applications
- Access Control Systems
- Vehicle Entry Systems
- Parking Facilities
- Residential Compounds
- Commercial Buildings
- Staff Attendance Systems
- Warehouses & Logistics Centers
- Industrial Facilities
- Apartment Complexes
- Security Gate Systems
Benefits
- Longer reading distance than standard RFID readers
- Fast card recognition
- Reliable access control integration
- Weatherproof outdoor operation
- Low power consumption
- Simple installation and setup
- Reduced vehicle waiting time
- Suitable for UAE climate conditions
Package Includes
- 1 × RFID 100CM Mid-Range Reader
- Mounting Accessories
- Connection Cable
- User Manual
Why Choose This RFID Mid-Range Reader?
- Up to 100cm reading distance
- Supports standard 125KHz EM cards
- IP67 waterproof protection
- Fast and reliable identification
- Easy integration with access control systems
- Suitable for parking and vehicle access control
- Industrial-grade performance
- Professional support available across UAE
Frequently Asked Questions
What is the maximum reading distance?
The reader supports RFID card detection from approximately 65cm to 105cm depending on card quality and installation conditions.
Which cards are supported?
The reader supports 125KHz EM ID cards and compatible RFID proximity cards.
Can this reader be used outdoors?
Yes. The IP67 waterproof housing makes it suitable for outdoor installations throughout the UAE.
Which communication protocol is supported?
The reader supports Wiegand 26, Wiegand 34, and Wiegand 42-bit communication formats.
Is it suitable for vehicle access control?
Yes. The extended reading distance makes it suitable for parking entrances, vehicle access systems, and gate automation projects.
