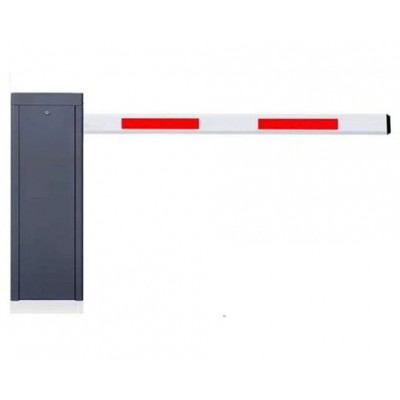

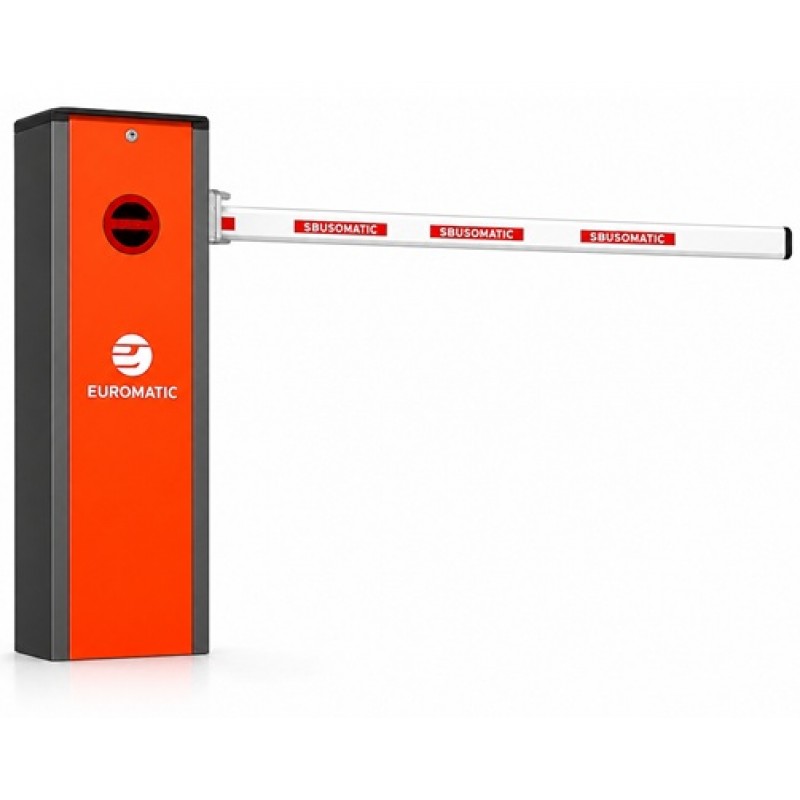

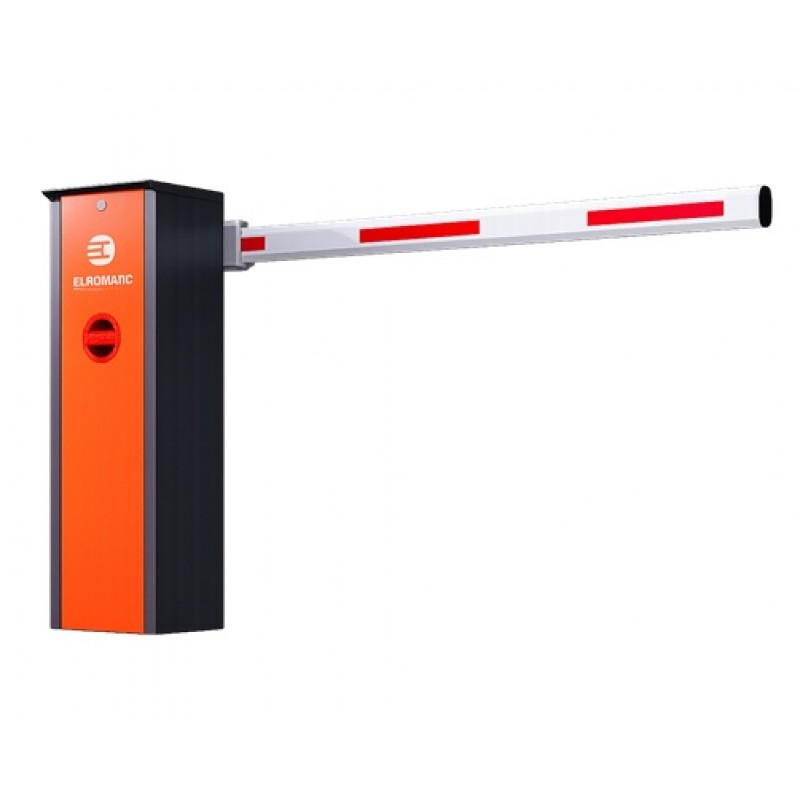

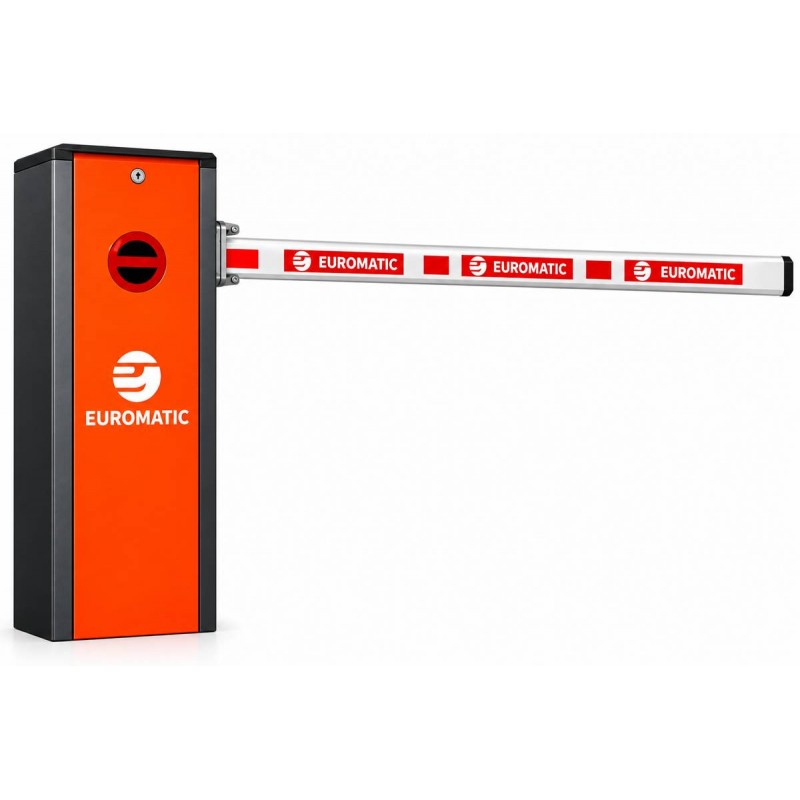

EUROMATIC 5th Generation Brushless Parking Barrier Gate 3-6M

Professional Automatic Parking Barrier System for Residential, Commercial & Industrial Applications

The EUROMATIC 5th Generation Brushless Parking Barrier Gate is a reliable automatic vehicle access control solution designed for residential buildings, commercial parking areas, offices, factories, warehouses, hotels and gated communities.

It is equipped with an advanced brushless DC motor for smooth, quiet and low-maintenance operation. The barrier supports boom arm lengths from 3 metres to 6 metres and offers adjustable opening and closing speed for different parking applications.

The intelligent control system supports automatic closing, arm auto-reverse, photocell sensors, loop detectors, radar sensors, traffic lights, access control systems and RS485 communication. The barrier can be configured for left-hand or right-hand installation and can be manually operated during a power failure.

Kit Includes

• 1 × EUROMATIC Brushless Parking Barrier Gate
• 1 × EUROMATIC Aluminum Boom Arm 3m–6m
• 1 × LED Flashing Light
• 1 × Pair of Photocell Safety Sensors
• 2 × Remote Controls
• 1 × Push Button
• 1 × Mounting Base Plate
• 1 × Anchor Bolt Set
• 2 × Manual Release Keys
• 1 × Installation Manual

Key Features

• 5th Generation brushless DC motor
• Suitable for 3m–6m boom arms
• Adjustable opening and closing speed
• Smooth and quiet operation
• Automatic closing function
• Arm auto-reverse safety function
• Photocell and loop detector compatible
• Radar sensor input support
• Traffic light output support
• RS485 communication
• Left-hand and right-hand installation
• Manual operation during power failure

Technical Specifications

• Brand: EUROMATIC
• Motor Type: Brushless DC Motor
• Boom Arm Length: 3m–6m
• Opening Speed: 1.25–3 Seconds
• Power Supply: DC24V
• Rated Power: 120W
• Protection Rating: IP54
• Remote Control Distance: Up to 100m in open areas
• Working Temperature: -35°C to +85°C

The EUROMATIC Brushless Parking Barrier Gate is suitable for professional parking management and vehicle access control projects across Dubai, Sharjah, Abu Dhabi and all UAE locations.
