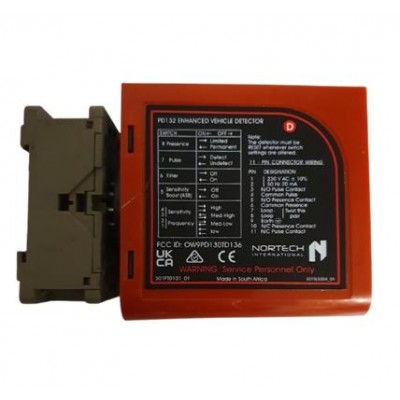

Nortech PD132 Advanced Vehicle Detection for Gate Barriers

Nortech PD132 Enhanced Vehicle Detector for Gate Barrier in UAE

• The Nortech PD132 Enhanced Vehicle Detector is a high-performance
• single-channel inductive loop detector designed for precise vehicle detection in gate barriers,
• parking systems, and access control applications across the UAE.
• This advanced detector operates by sensing changes in inductance
• when a vehicle passes over a loop embedded in the ground,
• ensuring accurate and reliable vehicle presence detection for automatic barriers,
• Equipped with Automatic Sensitivity Boost (ASB),
• the PD132 enhances detection capability for large vehicles such as trucks
• and high-clearance vehicles, ensuring consistent performance in all environments.
• The detector also features adjustable sensitivity and frequency settings,
• allowing installers to eliminate interference between adjacent loops
• and optimize performance for different site conditions.
• With built-in loop isolation protection,
• it is safeguarded against lightning and electrical surges,
• making it highly reliable for outdoor UAE installations.
• Its compact design and DIN-rail mounting capability
• make installation simple and efficient,
• while advanced diagnostics help identify loop faults
• and ensure smooth operation of gate barrier systems.

Key Features:

• Single-channel inductive loop detector
• Accurate vehicle detection for gate barriers
• Automatic Sensitivity Boost (ASB) for large vehicles
• Adjustable sensitivity and frequency settings
• Loop isolation protection against surge and lightning
• Presence and pulse relay outputs
• Diagnostic features for easy troubleshooting
• Compact design with DIN-rail mounting
• Reliable performance in harsh environments

Technical Specifications:

• Power Supply: 230V AC (PD132 version)
• Frequency Range: 12–80 kHz adjustable
• Sensitivity: 4-step adjustable
• Output: Presence relay & pulse relay
• Relay Rating: Up to 5A @ 230V AC
• Operating Temperature: -40°C to +70°C
• Mounting: DIN rail or panel
• Dimensions: Approx. 78 × 41 × 80 mm

Applications:

• Parking boom barriers
• Automatic sliding gates
• Industrial doors and shutters
• Access control systems
• Toll and traffic systems
• Warehouses and logistics centers
