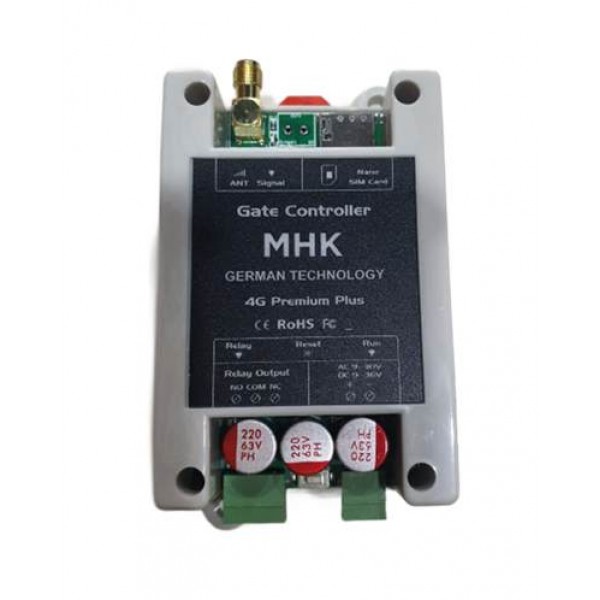

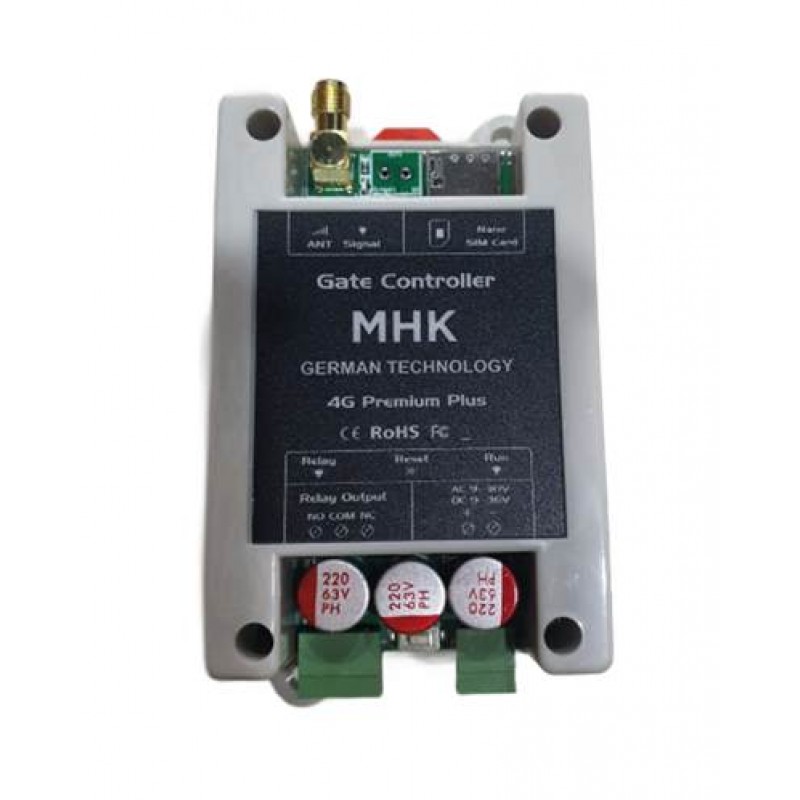

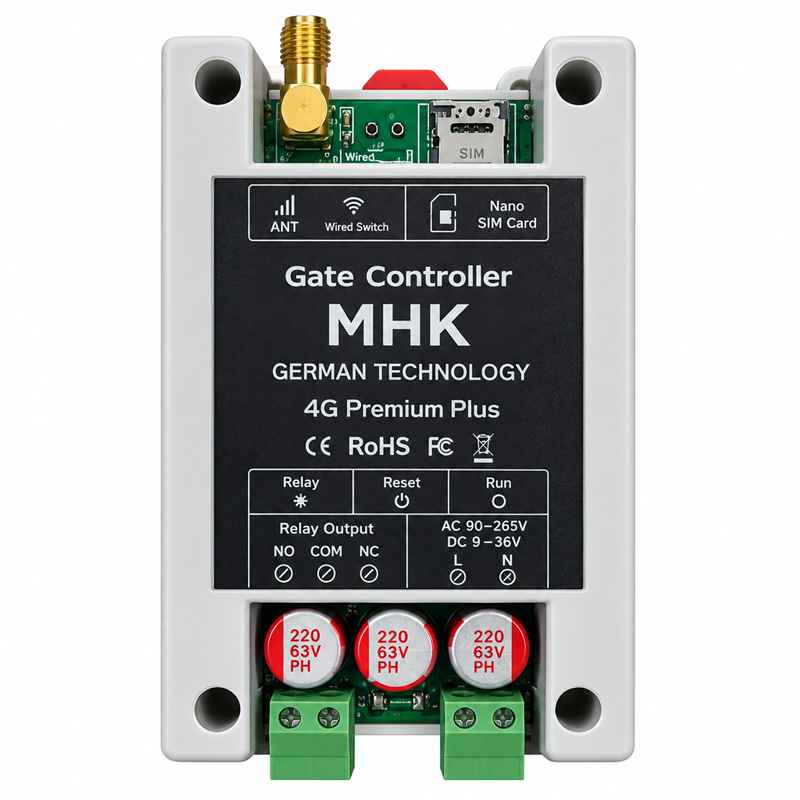

4G LTE GSM Access Control System for Gates, Garage Doors & Barriers
The MHK 4G GSM Gate Opener Controller is a powerful and intelligent access control solution designed for automatic gates, garage doors, parking barriers, bollards, rolling shutters, access doors, and industrial equipment. Using advanced 4G LTE, 3G, and GSM network technology, users can operate automation systems from anywhere simply by making a phone call or sending an SMS.
The controller works with a Nano SIM card and automatically rejects calls from authorized users while activating the relay output on the first ring. This allows completely free operation with no call charges and eliminates the need for remote controls, key fobs, or access cards.
Designed for residential villas, gated communities, commercial properties, warehouses, factories, farms, parking facilities, and industrial sites throughout Dubai, Sharjah, Abu Dhabi, Ajman, and across the UAE, the MHK 4G GSM Gate Opener provides secure, reliable, and modern access management.
With support for up to 200 or 1200 authorized users depending on configuration, administrators can easily add or remove users through SMS commands. Caller ID verification prevents unauthorized access, while SMS notifications provide confirmation of relay actions for enhanced security and monitoring.
Main Features
- Open gates via mobile phone call or SMS
- Supports GSM, 3G WCDMA, and 4G LTE networks
- No distance limitation for operation
- No call charges or remote controls required
- Automatic call rejection with relay activation
- Supports up to 200 or 1200 authorized users
- Secure caller ID access verification
- SMS confirmation for relay actions
- Supports wired switch connection
- Compact and easy-to-install design
Technical Specifications
- Product Type: 4G GSM Gate Opener Controller
- Network Support: GSM, 3G WCDMA, 4G LTE
- User Capacity: Up to 200 or 1200 Users
- Power Supply: AC 9–30V / DC 9–36V / 1A
- Output Relay: 3A / 240V AC
- SIM Card Type: Nano SIM (3V)
- Antenna: 50Ω SMA
- Wired Switch Input: Supported
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -20°C to +60°C
- Relative Humidity: 10–90% RH
- Dimensions: 96.5 × 50 × 31.5 mm
- Weight: 88 g
4G LTE Frequency Bands
- LTE-FDD: B1, B3, B5, B7, B8, B20, B28
- LTE-TDD: B38, B40, B41
- WCDMA: B1, B2, B4, B5, B8
- GSM Quad-Band: 850 / 900 / 1800 / 1900 MHz
Applications
- Automatic Sliding Gates
- Swing Gate Motors
- Garage Door Openers
- Parking Barriers
- Bollards
- Rolling Shutters
- Access Control Doors
- Industrial Machines
- Factories and Warehouses
- Commercial Buildings
- Residential Villas
- Private Compounds
Benefits
- Operate gates from anywhere
- Eliminates traditional remote controls
- Supports large user databases
- Improves security with caller ID verification
- Simple SMS programming
- Reliable 4G LTE communication
- Suitable for residential and commercial properties
- Low maintenance operation
Package Includes
- 1 × MHK 4G GSM Gate Opener Controller
- 1 × GSM Antenna
- User Manual
Why Choose MHK 4G GSM Gate Opener UAE?
- Advanced 4G LTE technology
- No distance limitations
- Supports up to 1200 users
- No remote controls required
- Secure caller ID access management
- Easy installation and configuration
- Compatible with most automation systems
- Ideal for UAE residential and commercial projects
Frequently Asked Questions
How does the 4G GSM gate opener work?
Authorized users call the SIM card number installed in the controller. The device rejects the call and activates the relay to open the gate.
Are there any call charges?
No. The system automatically rejects calls, allowing free operation.
How many users can be stored?
Depending on the model, the controller supports up to 200 or 1200 authorized users.
Can it control garage doors and barriers?
Yes. It is suitable for gates, garage doors, parking barriers, bollards, shutters, and access control systems.
Does it support 4G LTE networks?
Yes. The controller supports GSM, 3G WCDMA, and 4G LTE network communication.
