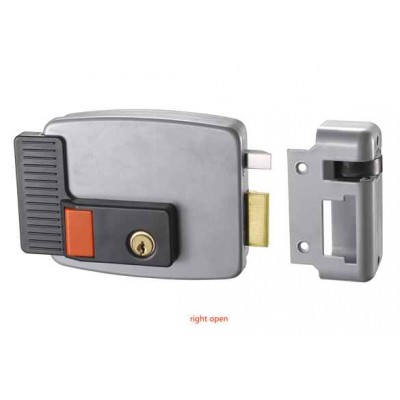

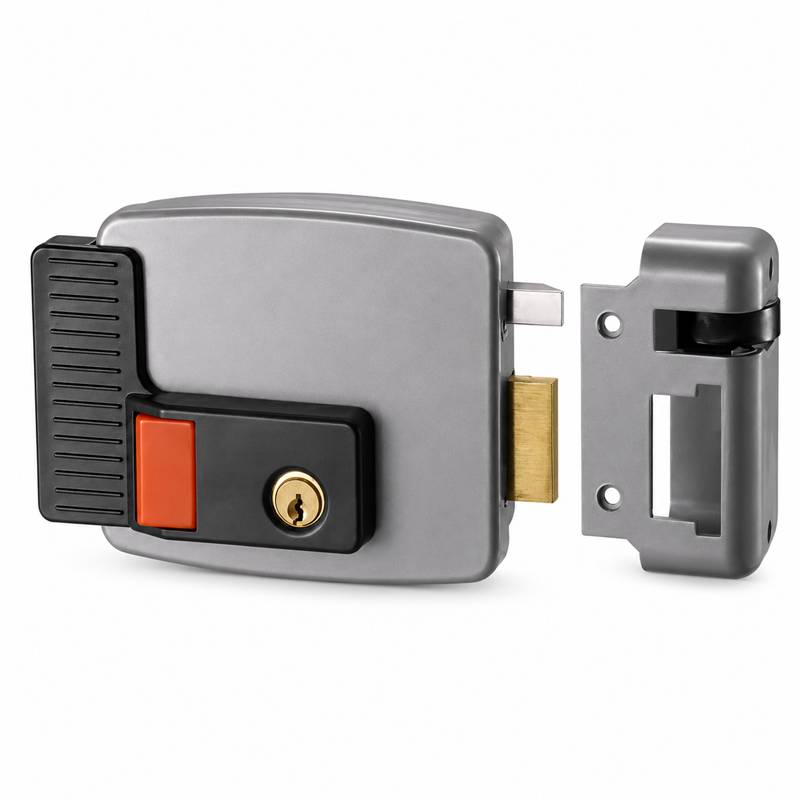

Automatic Electric Rim Lock UAE

High-Security Electric Lock for Iron Gates & Access Control Systems

The Automatic Electric Rim Lock is a reliable and secure locking solution designed for iron gates, pedestrian gates, residential villas, commercial properties, warehouses, and industrial facilities throughout Dubai, Sharjah, Abu Dhabi, and across the UAE.

This electric gate lock can be opened from the outside using a key and from the inside using the integrated push button or through an electrical access control system. Available in both left-hand and right-hand versions, it provides flexible installation for a wide range of gate applications.

Engineered with a patented low-voltage release system, the lock continues to operate even when voltage drops below the standard 12V level. Its advanced anti-vibration and anti-burglary design improves security while preventing accidental opening caused by impacts, gate movement, or environmental vibrations.

The integrated Day Stop function allows the gate to remain unlocked when free access is required, making it ideal for commercial premises, residential compounds, offices, and gated communities.

Key Features

• Available in left-hand and right-hand versions
• Suitable for iron gates and pedestrian gates
• External key operation
• Internal push button release
• Compatible with access control systems
• Patented low-voltage opening technology
• Anti-burglary self-locking mechanism
• Anti-vibration protection
• Day Stop function for free access
• Weather-protected construction

Technical Specifications

• Product Type: Automatic Electric Rim Lock
• Operating Voltage: 12V AC
• Current Consumption: 2.5A
• Backset: 70mm
• Outer Cylinder Length: 55mm
• Security Rating: Class 3 European Standard

Security Features

• Self-locking security mechanism
• Automatic impact resistance
• Anti-kickback protection
• Protected electrical release area
• Enhanced burglary resistance
• Secure locking during gate closure

Advanced Functions

• Guaranteed opening during voltage fluctuations
• Operates with voltage as low as 3.5V
• Day Stop free-access function
• Integrated internal release button
• Electric remote unlocking compatibility
• Smooth and reliable locking operation

Construction Features

• Zinc-coated steel housing
• Galvanized corrosion-resistant finish
• Protective weather roof
• Stainless steel latch flap
• Self-lubricating nylon roller
• Adjustable closure spring pressure

Applications

• Residential Villa Gates
• Compound Gates
• Pedestrian Access Gates
• Commercial Buildings
• Office Entrances
• Industrial Facilities
• Warehouses
• Apartment Complexes
• Access Control Systems
• Intercom Entry Systems

Benefits

• High-security gate protection
• Reliable operation in low-voltage conditions
• Reduced accidental opening
• Strong burglary resistance
• Easy integration with access control systems
• Long service life
• Suitable for outdoor installation
• Professional security solution for UAE properties

Package Includes

• 1 × Automatic Electric Rim Lock
• 1 × Protective Roof
• 2 × Keys
• 1 × Nozzle
• 1 × Mouthpiece
• Mounting Screws
• Installation Instructions

Why Choose This Electric Rim Lock?

• European Class 3 security rating
• Patented low-voltage release system
• Designed for iron gates and access control systems
• Day Stop function for convenient operation
• Galvanized weather-resistant construction
• Enhanced anti-burglary protection
• Available in left and right-hand versions
• Suitable for UAE residential and commercial installations

Frequently Asked Questions

Can this lock be installed on iron gates?

Yes. The lock is specifically designed for iron gates, pedestrian gates, and security entrances.

Can it work with access control and intercom systems?

Yes. It is compatible with access control systems, keypads, RFID readers, intercoms, and remote unlocking devices.

What is the Day Stop function?

The Day Stop function allows the gate to remain unlocked for free access when required.

Will the lock work during voltage drops?

Yes. The patented mechanism can operate with voltage levels as low as 3.5V.

Is it available for left and right-opening gates?

Yes. Both left-hand and right-hand models are available to suit different installation requirements.
