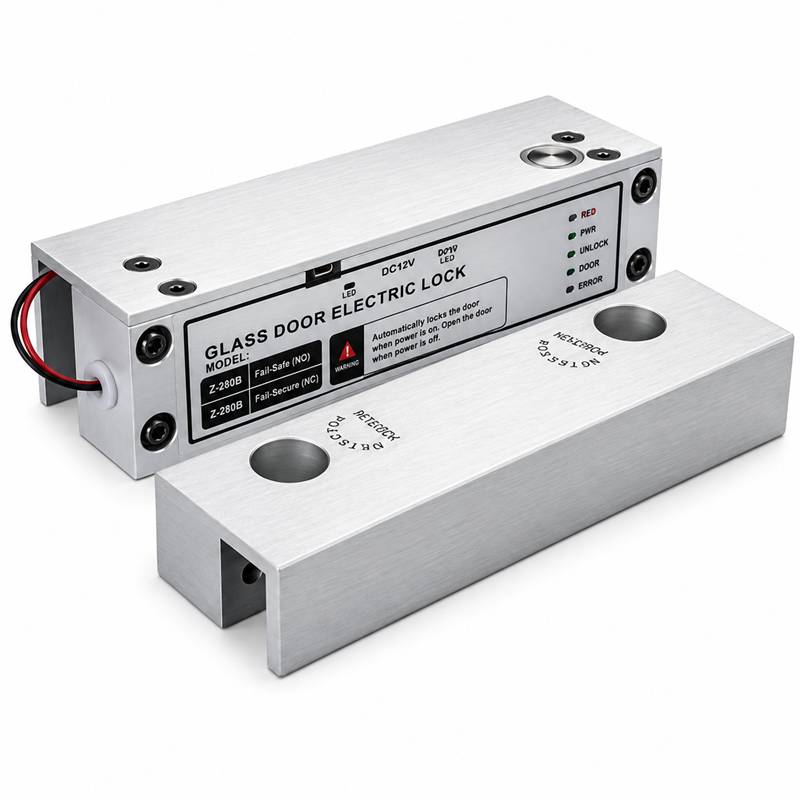

Electric Bolt Lock for Frameless Glass Door UAE

12V-24V Electric Bolt Lock for Frameless Glass Access Control Systems

The Electric Bolt Lock for Frameless Glass Doors is a professional access control locking solution designed for fully frameless glass doors in offices, commercial buildings, hotels, banks, showrooms, hospitals, and residential properties throughout Dubai, Sharjah, Abu Dhabi, and across the UAE.

Designed for 12–15mm frameless glass doors, this electric bolt lock provides secure electronic locking with adjustable fail-safe and fail-secure operating modes. Its flexible configuration makes it suitable for both public access areas and high-security installations.

The lock supports DC12V to DC24V operation and features adjustable door locking delay settings of 0, 3, or 6 seconds. Built-in door status monitoring output allows seamless integration with access control systems, RFID readers, biometric devices, keypads, push buttons, and security management platforms.

Manufactured with a stainless steel faceplate and durable internal components, the lock delivers reliable long-term performance while maintaining a clean and professional appearance on frameless glass doors.

Key Features

• Designed for fully frameless glass doors
• Suitable for 12–15mm glass thickness
• DC12V to DC24V operation
• Adjustable fail-safe and fail-secure modes
• Door status monitoring output
• Adjustable locking delay timer
• Stainless steel faceplate
• High security locking mechanism
• Compatible with access control systems
• Suitable for left-opening and right-opening doors

Technical Specifications

• Product Type: Electric Bolt Lock
• Door Type: Fully Frameless Glass Door
• Glass Thickness: 12–15mm
• Operating Voltage: DC12V–24V
• Start Current: 900mA
• Faceplate Material: Stainless Steel
• Wiring Type: 5 Wire Connection

Physical Specifications

• Faceplate Size: 150 × 43 × 39 mm
• Compact Installation Design
• Professional Frameless Door Mounting

Delay Timer Settings

• 0 Seconds
• 3 Seconds
• 6 Seconds
• User Selectable Timing

Operating Modes

• Fail-Safe Mode (Power to Lock)
• Fail-Secure Mode (Power to Open)
• Long Unlock State Function
• Flexible Security Configuration

Monitoring Functions

• Door Status Output
• NO/COM Signal Output
• Access Control Integration
• Real-Time Door Monitoring

Suitable Door Types

• Frameless Glass Doors
• Office Glass Doors
• Commercial Glass Entrances
• Hotel Glass Doors
• Showroom Glass Doors
• Bank Security Glass Doors

Applications

• Access Control Systems
• Office Buildings
• Commercial Complexes
• Hotels and Resorts
• Hospitals and Clinics
• Banks and Financial Institutions
• Retail Stores
• Showrooms
• Residential Buildings
• Security-Controlled Entrances

Benefits

• High security electronic locking
• Suitable for frameless glass doors
• Adjustable fail-safe and fail-secure operation
• Door monitoring capability
• Professional appearance
• Reliable long-term performance
• Easy integration with access control systems
• Suitable for UAE commercial and residential projects

Package Includes

• 1 × Electric Bolt Lock
• Mounting Accessories
• Connection Wires
• Installation Guide

Why Choose This Electric Bolt Lock?

• Designed specifically for frameless glass doors
• Supports DC12V and DC24V systems
• Adjustable fail-safe and fail-secure operation
• Built-in door status output
• Adjustable lock delay timer
• Stainless steel construction
• Professional access control compatibility
• Professional support available across UAE

Frequently Asked Questions

Which glass doors are compatible?

The lock is designed for fully frameless glass doors with thicknesses between 12mm and 15mm.

Can the lock operate in fail-safe mode?

Yes. The lock supports both fail-safe and fail-secure operation modes depending on installation requirements.

Does the lock provide door status monitoring?

Yes. It includes NO/COM door status output for integration with access control systems.

Can the delay timer be adjusted?

Yes. The timer can be configured for 0, 3, or 6 seconds.

Is it compatible with RFID and biometric access control systems?

Yes. The lock is fully compatible with RFID readers, biometric devices, keypads, push buttons, and access control controllers.
