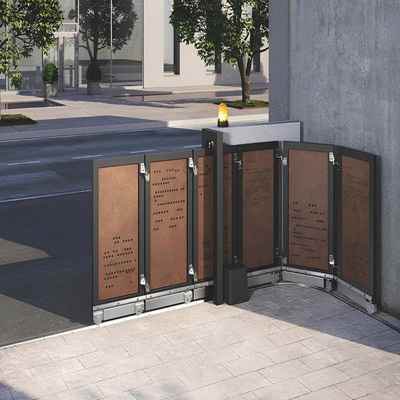

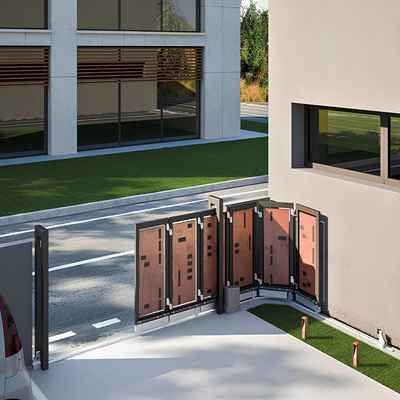

Custom Curved Track Automatic Sliding Gate Solutions

Curve Sliding Gate System UAE

• Versatile and Reliable: Our latest innovative system maximizing space efficiency!
• The most recent and cutting-edge sliding gate technology.
• Developed by KIWI, to optimize the available space the ideal system
• for the realization of gates that can exploit the space at the edge
• thanks to the rail and the special pivoting wheels that allow sliding in a curve.
• The 90° Curve System, developed with the care and commitment of KIWI,
• is the ideal and most innovative solution to exploit
• new spaces with all the characteristics of sliding gates.
• A system that also guarantees high performance and maximum freedom,
• as it can exploit angles and curves and is perfect for installation in tight spaces.
• Classic cases in which a swing gate would be too cumbersome.
• The kit for the first leaf is used exclusively for the first leaf
• and contains all the accessories for implementing
• the structure and customizing your own radius sliding gate.
• The secondary leaf kit consists of accessories
• for the implementation of each additional leaf.

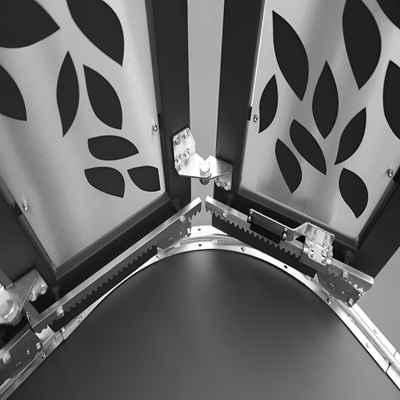

• The 90° Curve System allows free opening, regardless of the maximum length dimensions,
• thanks to special hinges designed to connect several wings,
• creating a true modular structure that can be adapted according to specific requirements.
• Each leaf, following the first, is equipped with a 360° pivoting wheel that
• allows it to slide on a curved rail with two different radius (0.5 m and 1 m).
• The rails can be placed along walls, fences and buildings,
• which allows a significant saving of space.
• The special wheels of this system are equipped with a damped balancing system
• that allows them to stay in contact with the rail,
• preventing derailment of the gate even if the ground is uneven.

Features of the innovative 90° Curve System:

• Max. Weight: 500 kg;
• Unlimited opening;
• Easy assembly;
• Solution available in the form of a kit.
• Maximum possibility of customization of the leaf

structure.

• offers all the appropriate accessories for this type of gate, such as
• Damped Wheels
• Curved Rails
• Hinges
• Support/Guide Rollers
• Panels
• Stoppers
• Handles
• Locks
