Original Control Panel for CAME ATI & FERNI Swing Gate Motors

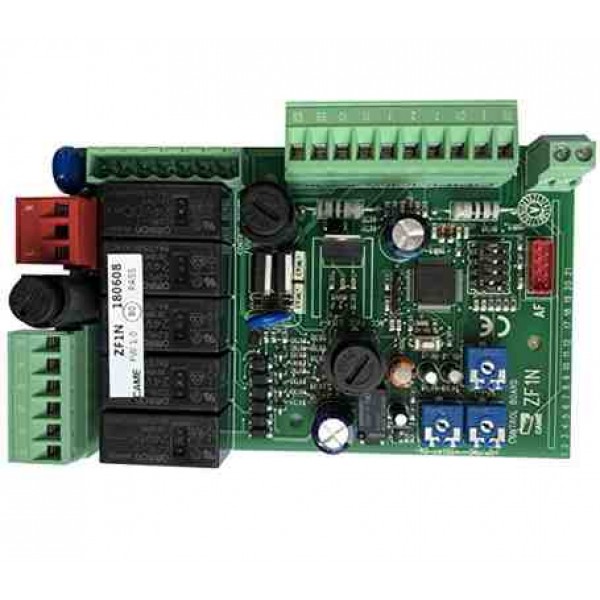

The CAME ZF1N Control Board is a genuine multifunction electronic control panel designed for 230V swing gate operators. Engineered by CAME Italy, this advanced controller delivers smooth, reliable, and secure automation for residential, commercial, and industrial swing gate systems throughout UAE.
The ZF1N is designed to control two-leaf swing gates and supports a wide range of CAME motors including ATI, FAST, FERNI, KRONO, and AXO series. Featuring a modern microprocessor system and built-in radio decoding support, the board provides intelligent gate management with enhanced safety and operational reliability.
The controller includes adjustable automatic closing functions, delayed leaf opening, electric lock support, obstacle management, flashing light output, total stop function, and transmitter self-learning capabilities. These features make the ZF1N an ideal solution for both new installations and replacement projects.
Built for long-term performance, the board is designed to operate reliably under UAE climate conditions including high temperatures, dust, humidity, and intensive daily use.
CAME ZF1N Main Features
- Original CAME multifunction control board
- Designed for two-leaf swing gates
- 230V motor control system
- Built-in microprocessor management
- Self-learning transmitter programming
- Adjustable automatic closing time
- Delayed opening for gate leaves
- Electric lock connection support
- Flashing light output
- Total stop safety function
- Open-Stop-Close-Stop command management
- LED status indication and diagnostics
Technical Specifications
- Model: ZF1N
- Type: Swing Gate Control Board
- Power Supply: 230V AC / 50Hz
- Motor Supply Voltage: 230V AC
- Maximum Power Consumption: 320W
- Protection Rating: IP54
- Radio Receiver Support: Yes
- Programming: Self-learning transmitter codes
- Application: Two-leaf swing gate automation
- Manufacturer: CAME Italy
Compatible CAME Motors
- CAME ATI Series
- CAME FAST Series
- CAME FERNI Series
- CAME KRONO Series
- CAME AXO Series
- Compatible 230V CAME Swing Gate Operators
Supported Accessories
- Photocell Safety Sensors
- Electric Locks
- Flashing Warning Lights
- Push Buttons
- Key Selectors
- Remote Control Receivers
- Safety Devices
- Access Control Systems
Applications
- Residential villa swing gates
- Apartment compound entrances
- Commercial property gates
- Industrial swing gate automation
- Gate control board replacement projects
- Automatic access control systems
Package Includes
- 1 × CAME ZF1N Control Board
- Installation Manual
Why Choose CAME ZF1N UAE?
- 100% genuine CAME product
- Compatible with multiple CAME motor series
- Reliable two-leaf swing gate control
- Advanced automation and safety functions
- Easy programming and maintenance
- Designed for UAE climate conditions
- Professional support available across UAE
Frequently Asked Questions
Which motors are compatible with the CAME ZF1N?
The ZF1N is compatible with CAME ATI, FAST, FERNI, KRONO, AXO, and other compatible 230V swing gate motors.
Does the control board support automatic closing?
Yes, the ZF1N includes adjustable automatic closing functions and delayed leaf management.
Can electric locks be connected?
Yes, the board supports electric lock connections along with flashing lights and safety accessories.
Does it support remote control programming?
Yes, the ZF1N includes transmitter self-learning functions and radio receiver compatibility.
Is installation support available in UAE?
Yes, installation, programming, repair, and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Al Ain, Umm Al Quwain, and throughout UAE.
