CAME GARD GT4 Automatic Barrier (GGT40AGS) in UAE

CAME GARD GT4 (803BB-0160) Boom Barrier Supplier in Dubai, Sharjah & Abu Dhabi

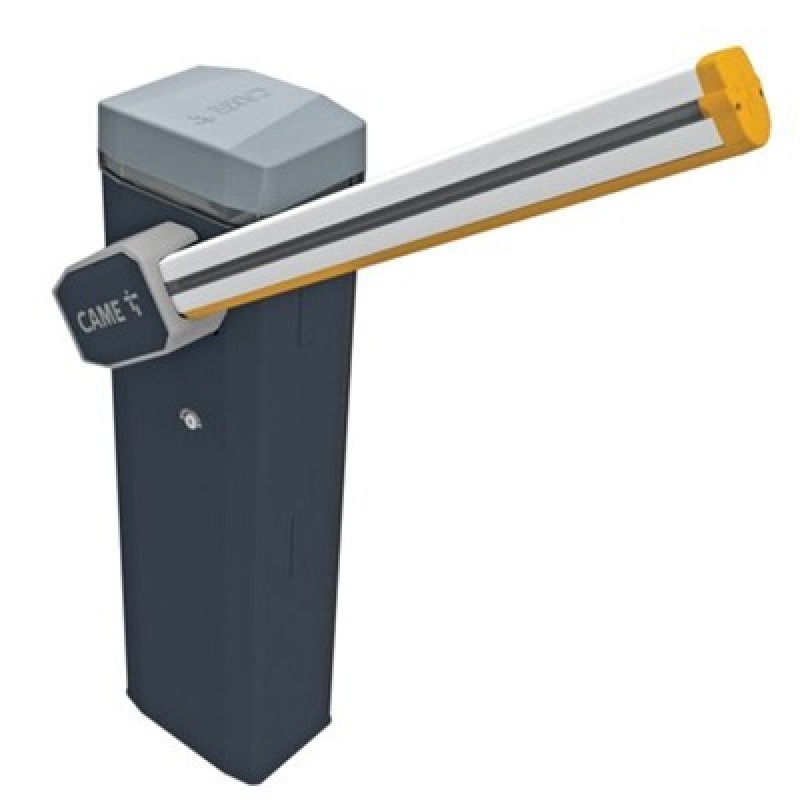

• The CAME GARD GT4 Automatic Barrier (Model 803BB-0160 / GGT40AGS) is a professional-grade access control solution
• designed for entrances up to 5 meters wide. Equipped with a 24V DC irreversible gearmotor with encoder,
• this barrier delivers fast, smooth, and reliable performance for high-traffic residential,
• commercial, and industrial environments across the UAE.
• The cabinet is manufactured from galvanized and painted steel and includes provisions
• for installing accessories such as flashing lights, photocells, and access control devices.
• The integrated balancing spring ensures smooth movement and long service
• life while reducing mechanical stress during high-frequency operation.
• With a fast opening and closing time of 2 to 6 seconds and a heavy-duty design capable of 350 cycles per hour,
• the GT4 is ideal for car parks, gated communities, office buildings, hotels, malls, and industrial facilities.
• Its IP54 protection rating makes it resistant to dust and weather, perfectly suited to UAE climate conditions.

Key Features:

• Suitable for entrances up to 5 meters wide
• 24V DC irreversible gearmotor with integrated encoder
• Galvanized and painted steel cabinet
• Balancing spring included
• High-speed operation (2–6 seconds)
• Designed for intensive use (up to 350 cycles/hour)
• IP54 dust and weather protection
• Supports integration with safety and access control accessories
• Reliable performance in high-traffic environments

Technical Specifications:

• Max. Clear Opening Width: 5 meters
• Power Supply: 230V AC, 50/60 Hz
• Motor Power Supply: 24V DC
• Power: 240 W
• Opening/Closing Time at 90°: 2–6 seconds
• Cycles per Hour: 350
• Operating Temperature: –20°C to +55°C
• Protection Rating: IP54
• Torque: 300 Nm
• Reduction Ratio: 202
• Weight: 56 kg

Applications:

• Residential gated communities
• Commercial parking areas
• Office buildings
• Shopping malls
• Hotels and hospitals
• Industrial sites and warehouses
• Toll gates and controlled entrances
