Heavy Duty Underground Swing Gate Automation for Gates up to 5.5m and 700 KG

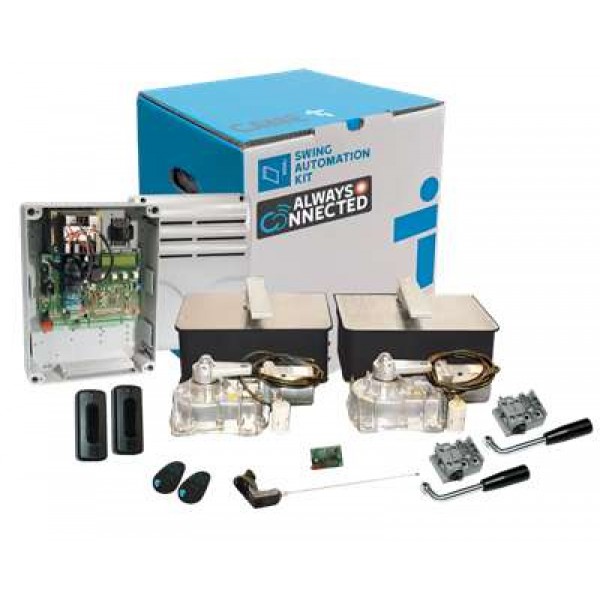

The CAME FROG PLUS Underground Swing Gate Motor is a premium automation solution designed for residential, commercial, and industrial swing gates across UAE.
Engineered for gate leaves up to 5.5 meters long and weighing up to 700 KG, the FROG PLUS delivers powerful, smooth, and reliable gate automation while maintaining the aesthetic appearance of the entrance through its concealed underground installation.
Powered by a robust irreversible 230V AC underground gearmotor, the system provides secure gate positioning without requiring additional locking devices in most installations.
The integrated encoder technology ensures precise gate movement control, obstacle detection, and adjustable leaf-closing functionality for enhanced safety and performance.
Designed for high-end villas, luxury properties, commercial buildings, gated communities, and industrial entrances, the FROG PLUS offers quiet operation and dependable performance even in demanding environments.
With a superior IP67 protection rating, the motor is completely protected against dust and water ingress, making it perfectly suited for UAE weather conditions including heat, humidity, rain, and dusty environments.
The motor also features thermal protection up to 150°C, ensuring safe operation during intensive use and extending the life of the automation system.
CAME FROG PLUS Features
- Irreversible 230V AC underground gearmotor
- Integrated encoder technology
- Suitable for gate leaves up to 5.5 meters
- Supports gate weights up to 700 KG
- Adjustable leaf-closing function
- Smooth and quiet operation
- Underground concealed installation
- High-level obstacle detection safety
- Thermal protection up to 150°C
- IP67 water and dust protection
- Suitable for intensive residential and commercial use
Technical Specifications
- Product Code: 001FROG-PM4
- Model: FROG PLUS
- Maximum Gate Leaf Length: 5.5 m
- Maximum Gate Weight: 700 KG
- Power Supply: 230V AC 50/60Hz
- Motor Voltage: 230V AC
- Current Absorption: 2.1 A
- Power Consumption: 500 W
- Opening Time at 90°: 30 Seconds
- Duty Cycle: 10 Cycles Per Hour
- Operating Temperature: -20°C to +55°C
- Motor Thermal Protection: 150°C
- Protection Rating: IP67
Applications
- Luxury villa swing gates
- Residential compounds
- Commercial building entrances
- Industrial swing gates
- High-end gated communities
- Underground gate automation systems
- Private estate entrances
- Intensive-use automated access points
Why Choose CAME FROG PLUS UAE?
- Hidden underground installation design
- Suitable for gates up to 700 KG
- Integrated encoder safety technology
- Premium Italian automation quality
- IP67 waterproof and dustproof protection
- Ideal for luxury gate installations
- Professional installation support across UAE
Frequently Asked Questions
What gate size can the CAME FROG PLUS support?
The CAME FROG PLUS is suitable for swing gate leaves up to 5.5 meters long and weighing up to 700 KG.
What is the advantage of underground installation?
The underground design keeps the motor hidden from view, preserving the appearance of the gate while providing powerful automation.
Is the motor waterproof?
Yes, the CAME FROG PLUS features an IP67 protection rating, providing excellent resistance against dust and water.
Is installation available in UAE?
Yes, professional installation and maintenance support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Al Ain, Umm Al Quwain, and across UAE.
