Industrial Sliding Gate Motor for Heavy Duty Gate Automation

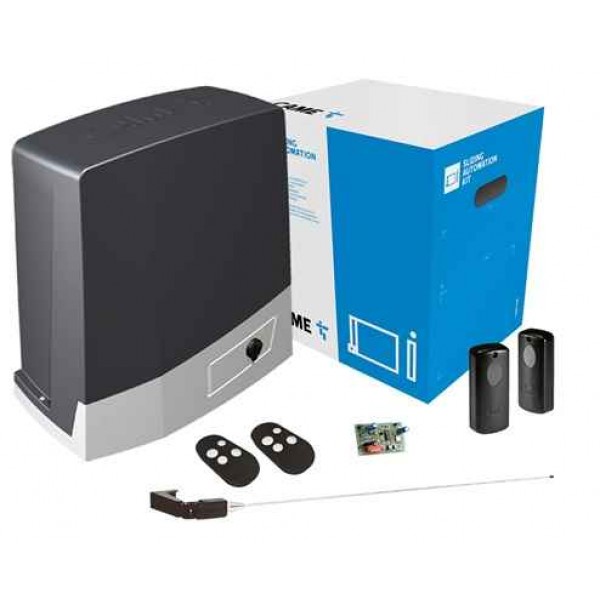

The CAME BKV25AGS 2500 KG Sliding Gate Motor is a high-performance industrial automation system designed for heavy-duty sliding gates weighing up to 2500 KG and gate lengths up to 20 meters.
Powered by a powerful 36V gear motor, the CAME BKV25AGS delivers smooth, reliable, and efficient gate operation for industrial facilities, commercial properties, warehouses, logistics centers, and high-traffic residential compounds across UAE.
This advanced sliding gate operator features an integrated electronic control board with a graphic display, allowing simple setup, diagnostics, programming, and system management.
Adaptive Speed & Torque Technology automatically adjusts motor performance according to gate weight, operating conditions, and resistance levels, ensuring smoother movement while reducing mechanical wear and extending system lifespan.
The integrated obstacle detection system and intelligent movement management provide enhanced safety for people, vehicles, and property by continuously monitoring gate movement and operating conditions.
Designed for intensive industrial use, the BKV25AGS includes four independent safety inputs and a heavy-duty module 6 steel pinion, ensuring dependable operation even in demanding environments.
The robust IP54 weatherproof housing protects internal components from dust, humidity, and harsh outdoor conditions, making it perfectly suited for Dubai, Sharjah, Abu Dhabi, and all UAE regions.
CAME BKV25AGS Features
- Suitable for sliding gates up to 2500 KG
- Supports gate lengths up to 20 meters
- Powerful 36V gear motor
- Integrated graphic display control board
- Adaptive Speed & Torque Technology
- Built-in obstacle detection system
- Four independent safety inputs
- Intelligent movement management
- Module 6 steel pinion
- IP54 weatherproof housing
- Designed for intensive industrial operation
Technical Specifications
- Model: BKV25AGS
- CAME Code: 801MS-0320
- Maximum Gate Weight: 2500 KG
- Maximum Gate Length: 20 m
- Power Supply: 230V AC 50/60Hz
- Motor Voltage: 36V
- Current Absorption: 10 A
- Power Consumption: 300 W
- Operating Speed: 12 m/min
- Thrust Force: 1000 N
- Protection Rating: IP54
- Pinion Type: Module 6 Steel Pinion
Applications
- Industrial sliding gates
- Commercial entrances
- Factory access gates
- Warehouse entrances
- Logistics centers
- Loading bay gates
- Business parks
- High-traffic residential compounds
Why Choose CAME BKV25AGS UAE?
- Heavy-duty automation for gates up to 2500 KG
- Advanced 36V motor technology
- Adaptive Speed & Torque control
- Integrated obstacle detection
- Industrial-grade reliability
- Excellent performance in UAE climate
- Professional installation support across UAE
Frequently Asked Questions
What gate weight can the CAME BKV25AGS support?
The CAME BKV25AGS is designed for sliding gates weighing up to 2500 KG and lengths up to 20 meters.
What is Adaptive Speed & Torque Technology?
This technology automatically adjusts motor performance based on gate conditions, providing smoother operation and reducing mechanical stress.
Is this motor suitable for industrial applications?
Yes, the BKV25AGS is specifically designed for industrial facilities, warehouses, logistics centers, factories, and commercial gate automation systems.
Is installation available in UAE?
Yes, professional installation and maintenance support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Al Ain, Umm Al Quwain, and across UAE.
