Sliding Gate Motor Control Panel for BFT DEIMOS AC 800

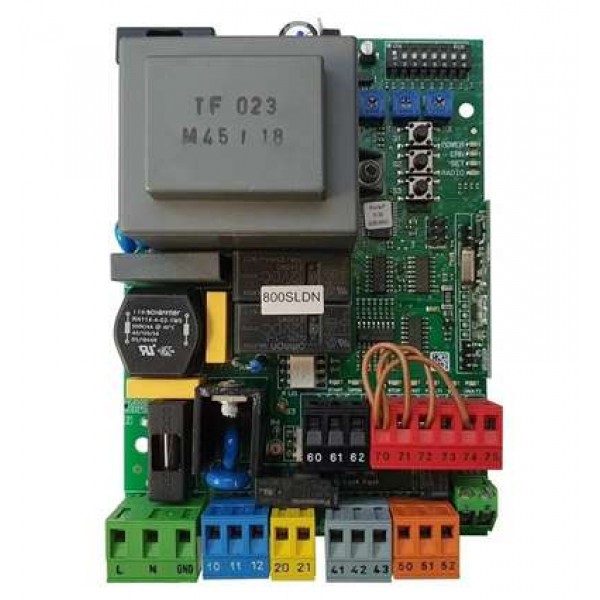

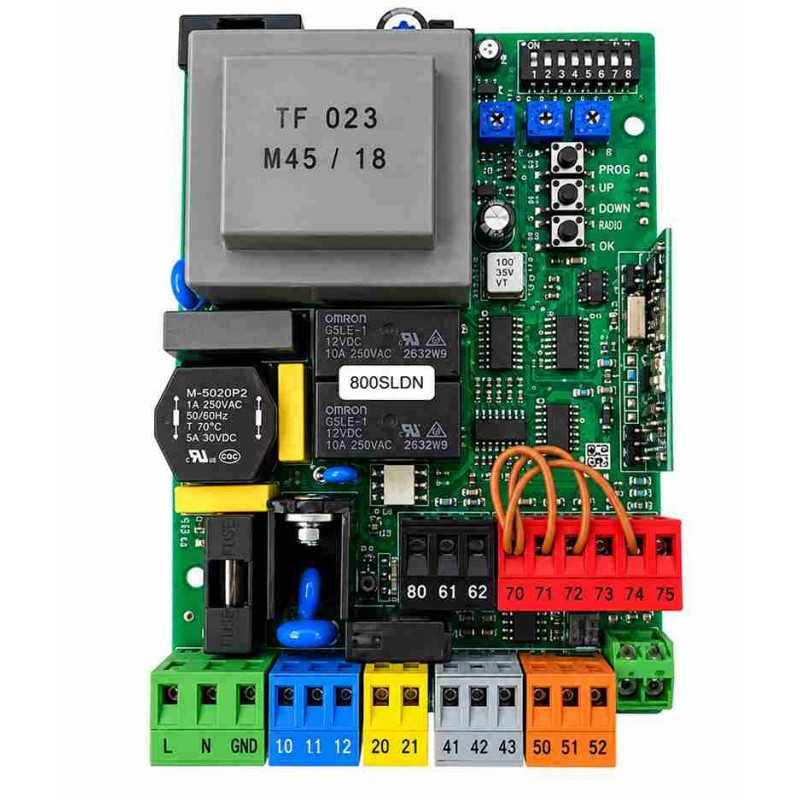

The BFT SHYRA F 800SLDN Control Board is a premium Italian-made electronic control panel designed specifically for BFT DEIMOS AC 800 sliding gate automation systems.
Manufactured by BFT Italy, the SHYRA F 800SLDN delivers intelligent automation management, reliable safety control, and smooth operation for residential, commercial, and industrial sliding gate installations across UAE.
This advanced control board operates on a 230V single-phase power supply and supports 230V single-phase sliding gate motors with maximum operator power up to 500W.
The BFT SHYRA F 800SLDN is specifically engineered for the BFT DEIMOS AC 800 KG sliding gate motor range, providing stable automation control and dependable long-term performance.
The board features removable terminal blocks for simplified installation and maintenance, while settings are managed through practical potentiometer adjustments for easy configuration.
An integrated dual-channel radio receiver allows remote transmitter management and supports convenient automation control for multiple users.
The control panel includes LED-based fault reporting, enabling quick diagnostics and easier troubleshooting during servicing or maintenance procedures.
Advanced automation functions include pedestrian opening via radio control, quick lock, and pulse lock management for enhanced gate security and access flexibility.
The SHYRA F 800SLDN also features two verified safety inputs, including one dedicated 8K2 safety edge input for enhanced obstacle detection and anti-crushing protection.
Designed for demanding outdoor automation environments, the BFT SHYRA F 800SLDN performs reliably under UAE climate conditions including heat, humidity, dust, and intensive daily gate operation.
The control board is ideal for villas, residential compounds, commercial entrances, industrial facilities, warehouses, and automatic sliding gate systems installed across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain, Al Ain, and throughout UAE.
BFT SHYRA F 800SLDN Key Features
- Control board for BFT DEIMOS AC 800 sliding gate motors
- 230V single-phase control panel
- Supports operators up to 500W
- Integrated dual-channel radio receiver
- Pedestrian opening via radio control
- Quick lock and pulse lock functions
- LED-based fault reporting system
- Potentiometer-based settings adjustment
- Removable terminal blocks for easy installation
- Two verified safety inputs
- Dedicated 8K2 safety edge input
- Reliable sliding gate automation management
- Made in Italy premium BFT quality
BFT SHYRA F 800SLDN Technical Specifications
| Specification | Details |
| Model | SHYRA F 800SLDN |
| Reference | I700081 10001 |
| Part Number | 2610736 |
| Brand | BFT |
| Product Type | Sliding Gate Control Board |
| Application | BFT DEIMOS AC 800 |
| Panel Power Supply | 230V Single-Phase |
| Operator Power Supply | 230V Single-Phase |
| Maximum Operator Power | 500W |
| Integrated Receiver | Dual Channel |
| Programming Type | Potentiometer Settings |
| Fault Reporting | LED-Based Diagnostics |
| Pedestrian Opening | Yes (Radio Control) |
| Quick Lock | Yes |
| Pulse Lock | Yes |
| Safety Inputs | 2 Verified Inputs |
| 8K2 Safety Edge Input | Yes |
Compatible BFT Sliding Gate Motors
- BFT DEIMOS AC 800 KG
- BFT DEIMOS Sliding Gate Automation Systems
Applications
- Residential sliding gate automation
- Commercial sliding gate systems
- Industrial sliding gates
- Villa entrance automation
- Warehouse access systems
- Automatic compound gates
- High-security sliding gate installations
- Professional gate automation projects
Why Choose BFT SHYRA F 800SLDN in UAE?
- Premium Italian BFT engineering
- Designed specifically for DEIMOS AC 800
- Integrated dual-channel radio receiver
- Advanced safety input management
- Easy programming and diagnostics
- Reliable automation performance
- Suitable for UAE climate conditions
- Professional installation and support across UAE
Frequently Asked Questions
Which motors are compatible with the BFT SHYRA F 800SLDN?
The control board is designed for BFT DEIMOS AC 800 KG sliding gate motors.
What voltage does the BFT SHYRA F 800SLDN use?
The control panel operates on 230V single-phase power supply.
Does the BFT SHYRA F 800SLDN include a radio receiver?
Yes, the board includes an integrated dual-channel radio receiver.
Does the BFT SHYRA F 800SLDN support safety edge inputs?
Yes, the control board includes a dedicated 8K2 safety edge input and two verified safety inputs.
Is the BFT SHYRA F 800SLDN suitable for UAE installations?
Yes, the control board is suitable for residential, commercial, and industrial sliding gate systems operating in UAE climate conditions.
