Universal 230V Swing Gate Control Panel with Display & Diagnostics

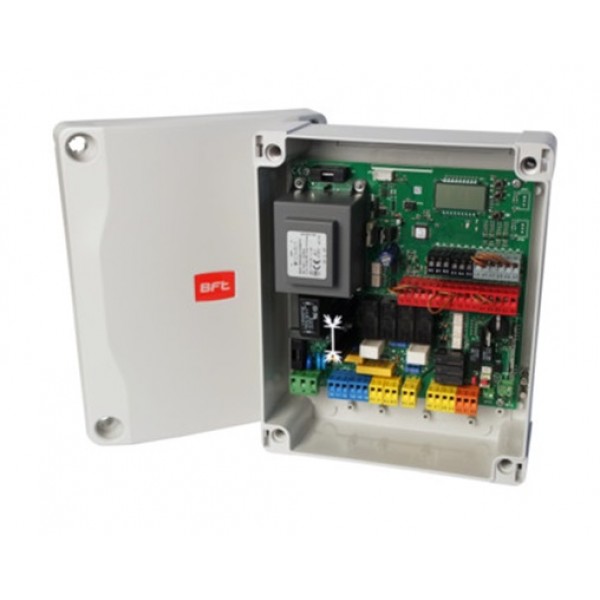

The BFT RIGEL 6 Swing Motor Control Board is a premium Italian-made universal control panel designed for one or two 230V swing gate operators.
Manufactured by BFT Italy, the RIGEL 6 delivers advanced automation management, intelligent diagnostics, and professional safety functions for residential, commercial, and industrial swing gate automation systems across UAE.
This high-performance control panel operates on a 230V single-phase power supply and supports one or two 230V operators with maximum motor power of 600W + 600W.
The BFT RIGEL 6 is compatible with multiple BFT swing gate motors including BFT PHOBOS AC A25 and BFT PHOBOS AC A50 automation systems.
The integrated display provides easy programming, real-time diagnostics, and simplified automation configuration for installers and maintenance technicians.
Removable terminal blocks simplify installation and servicing operations while improving wiring convenience.
The built-in four-channel radio receiver allows advanced remote-control management with customizable radio channel functions and the ability to delete individual transmitters directly from memory.
Advanced safety and automation features include electronic torque limiting, adjustable obstacle sensitivity, electronic slowdown during opening and closing, and separate limit switch inputs for each motor.
The RIGEL 6 also supports electro-lock management, traffic light control systems, weekly timer scheduling, and preheating functionality for hydraulic operators.
The delayed output duration can be personalized according to project requirements, making the control board highly flexible for professional automation installations.
Main automation functions include automatic re-closing, intelligent movement management, advanced obstacle protection, and smooth gate operation.
Designed for demanding outdoor automation environments, the BFT RIGEL 6 performs reliably in UAE climate conditions including high temperatures, humidity, dust, and intensive daily operation.
The control board is ideal for villas, private compounds, commercial entrances, apartment buildings, industrial swing gate systems, and professional automation projects across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain, Al Ain, and throughout UAE.
BFT RIGEL 6 Key Features
- Universal control panel for one or two 230V operators
- Integrated display for programming and diagnostics
- Supports 600W + 600W motor output
- Built-in four-channel radio receiver
- Electronic torque limiter system
- Electronic slowdown during opening and closing
- Electro-lock management
- Separate limit switch inputs for each motor
- Traffic light management support
- Weekly timer functionality
- Adjustable obstacle sensitivity
- Removable terminal blocks
- Remote control memory management
- Made in Italy premium BFT quality
BFT RIGEL 6 Technical Specifications
| Specification | Details |
| Model | RIGEL 6 |
| Product Code | D113833 00002 |
| Brand | BFT |
| Product Type | Swing Gate Control Board |
| Application | One or Two Swing Gate Operators |
| Card Power Supply | 230V Single-Phase |
| Operator Power Supply | 230V Single-Phase |
| Maximum Motor Power | 600W + 600W |
| Integrated Receiver | 4-Channel |
| Programming System | Display & Diagnostics |
| Electronic Torque Limiter | Yes |
| Electronic Slowdown | Opening & Closing |
| Electro Lock Management | Yes |
| Traffic Light Management | Yes |
| Weekly Timer | Yes |
| Obstacle Sensitivity Adjustment | Yes |
| Limit Switch Inputs | Separate for Each Motor |
| Remote Deletion Function | Yes |
| Terminal Blocks | Removable |
Compatible BFT Swing Gate Motors
- BFT PHOBOS AC A25
- BFT PHOBOS AC A50
- BFT 230V Swing Gate Automation Systems
- BFT Hydraulic Swing Gate Operators
Applications
- Residential swing gate automation
- Commercial gate systems
- Villa gate entrances
- Apartment compounds
- Industrial swing gate projects
- Hydraulic gate automation
- High-security gate systems
- Professional automation installations
Why Choose BFT RIGEL 6 in UAE?
- Premium Italian BFT engineering
- Advanced display programming and diagnostics
- Professional automation management features
- Reliable obstacle detection and safety systems
- Integrated 4-channel receiver
- Suitable for 230V swing gate motors
- Reliable operation in UAE climate conditions
- Professional installation and technical support across UAE
Frequently Asked Questions
Which motors are compatible with the BFT RIGEL 6?
The control board is compatible with BFT PHOBOS AC A25, PHOBOS AC A50, and other compatible 230V swing gate motors.
Does the BFT RIGEL 6 include a built-in receiver?
Yes, the board includes an integrated four-channel radio receiver.
Can the BFT RIGEL 6 control two swing gate motors?
Yes, the control panel supports one or two 230V operators.
Does the BFT RIGEL 6 include obstacle protection?
Yes, the board includes electronic torque limiting and adjustable obstacle sensitivity for enhanced safety.
Is the BFT RIGEL 6 suitable for UAE outdoor automation systems?
Yes, the control board is designed for reliable operation in UAE residential, commercial, and industrial automation environments.
