24V Intelligent Garage Door Automation for Sectional Garage Doors

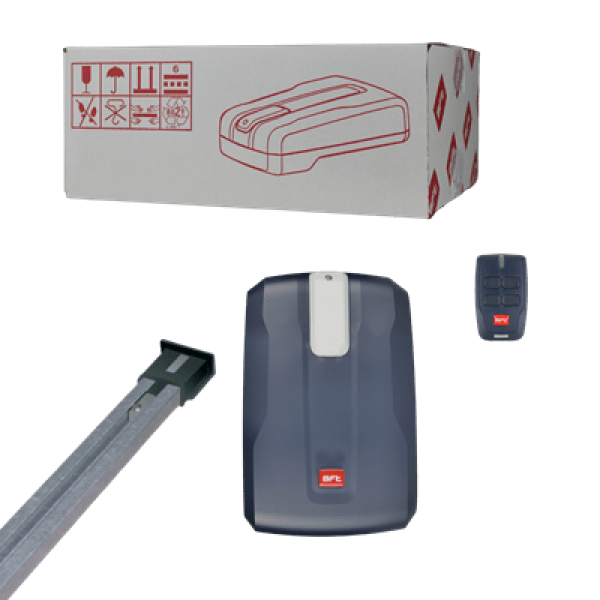

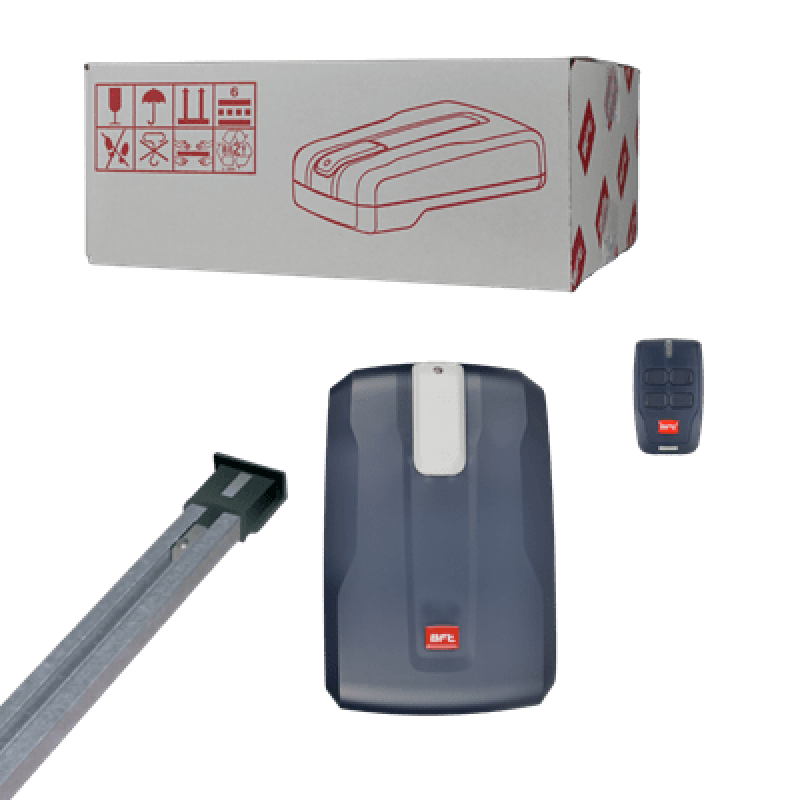

The BFT BOTTICELLI SMART BT A850 Garage Door Opener is a premium Italian-made 24V automation system designed for sectional garage doors requiring intensive daily operation.
Manufactured by BFT Italy, the BOTTICELLI SMART BT A850 combines high-speed performance, intelligent safety technology, and reliable operation for residential and commercial garage automation systems throughout UAE.
This advanced 24V garage door operator delivers a powerful tractive force of 850 N and is suitable for sectional garage doors with surface areas up to 13 m².
The high-performance motor provides fast opening speeds up to 210 mm/sec with chain rail systems and up to 240 mm/sec with belt rail systems, minimizing waiting times and improving user convenience.
The BFT BOTTICELLI SMART BT A850 is designed for intensive use applications and supports up to 50 daily opening and closing cycles, making it ideal for residential villas, shared parking systems, compounds, and commercial garage installations.
Equipped with advanced encoder technology and the exclusive BFT D-Track force management system, the operator continuously controls torque and obstacle detection to ensure maximum operational safety in all installation conditions.
The integrated slowdown function provides smooth and quiet garage door movement while reducing mechanical stress and extending motor lifespan.
The intelligent VENERE BT A DIS control unit delivers advanced automation management, stable performance, and reliable garage door operation.
The mechanical locking system ensures secure garage door positioning, while the steel cord or cable release mechanism allows easy manual operation during power failures.
With low energy consumption, advanced safety functions, and reliable operation between -20°C and +60°C, the BFT BOTTICELLI SMART BT A850 is perfectly suited for UAE climate conditions including heat, humidity, and demanding daily use.
The BFT BOTTICELLI SMART BT A850 is ideal for sectional garage doors in villas, residential compounds, commercial buildings, warehouses, parking facilities, and smart automation projects across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain, Al Ain, and throughout UAE.
BFT BOTTICELLI SMART BT A850 Key Features
- 24V sectional garage door opener
- Suitable for garage doors up to 13 m²
- 850 N tractive force and thrust
- Fast opening speed up to 240 mm/sec
- Advanced BFT D-Track safety technology
- Integrated encoder positioning system
- Intensive-use garage automation
- Integrated slowdown functionality
- Low energy consumption
- Mechanical locking system
- Steel cord manual release
- Made in Italy premium BFT quality
BFT BOTTICELLI SMART BT A850 Technical Specifications
| Specification | Details |
| Model | BOTTICELLI SMART BT A850 |
| Reference | P915212 00002 |
| Part Number | 2601282 |
| Brand | BFT |
| Operator Type | 24V Garage Door Operator |
| Control Unit | VENERE BT A DIS |
| Nominal Voltage | 24 V |
| Power Consumption | 200 W |
| Tractive Force & Thrust | 850 N |
| Maximum Door Surface Area | 13 m² |
| Maximum Opening Speed (Chain Rail) | 210 mm/sec |
| Maximum Opening Speed (Belt Rail) | 240 mm/sec |
| Daily Movements | 50 Cycles |
| Type of Limit Switch | Encoder + Mechanical Stop |
| Slowdown Function | Yes |
| Locking System | Mechanical |
| Release System | Steel Cord / Cable |
| Impact Reaction | D-Track |
| Protection Rating | IP20 |
| Environmental Conditions | -20°C to +60°C |
| Interconnectivity | Yes |
Applications
- Sectional garage doors
- Residential villa garages
- Shared residential parking
- Commercial garage entrances
- Warehouse garage systems
- Automatic parking facilities
- Smart garage automation projects
- High-frequency residential use
Why Choose BFT BOTTICELLI SMART BT A850 in UAE?
- Premium Italian BFT engineering
- Fast-opening intelligent garage automation
- Advanced D-Track obstacle detection system
- High-speed operation with encoder technology
- Reliable performance for intensive daily use
- Energy-efficient 24V motor technology
- Suitable for UAE climate conditions
- Professional installation and support across UAE
Frequently Asked Questions
What garage door size is supported by the BFT BOTTICELLI SMART BT A850?
The operator supports sectional garage doors up to 13 m² surface area.
What is the opening speed of the BFT BOTTICELLI SMART BT A850?
The opening speed is up to 210 mm/sec with chain rail and up to 240 mm/sec with belt rail systems.
How many daily cycles does the BFT BOTTICELLI SMART BT A850 support?
The operator supports approximately 50 daily opening and closing movements.
What safety technology does the BFT BOTTICELLI SMART BT A850 use?
The system uses advanced encoder positioning and BFT D-Track force management technology for obstacle detection and safety.
Is the BFT BOTTICELLI SMART BT A850 suitable for UAE weather conditions?
Yes, the operator is designed for reliable operation in UAE heat, humidity, and demanding environmental conditions.
