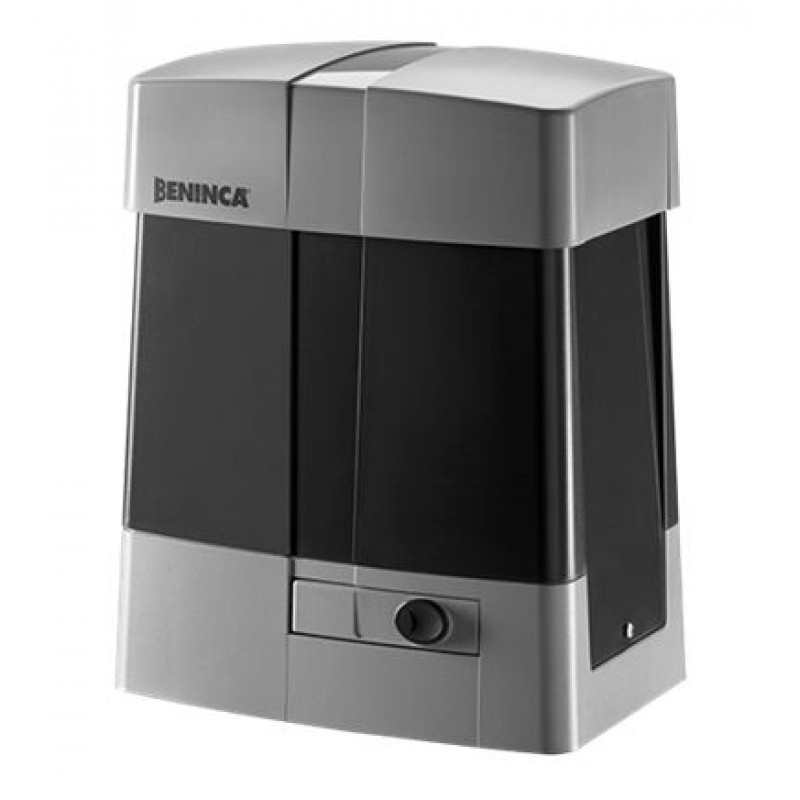

BENINCA BULL20T 2000 KG Industrial Sliding Gate Motor in UAE

BENINCA BULL20T 2000 KG Industrial Sliding Gate Motor in Dubai

• The BENINCA BULL20T 2000 KG Sliding Gate Motor is a high-performance industrial automation solution
• engineered for intensive-use sliding gates in demanding environments.
• Designed for industrial facilities, logistics yards, factories, warehouses, and large commercial premises,
• the BULL20T delivers powerful thrust, precise movement control, and long-term reliability.
• Powered by a 400 Vac three-phase motor, the BULL20T is built to handle heavy gates up to 2000 kg with ease.
• The motor features electronic braking, ensuring accurate stopping positions
• and enhanced safety during both opening and closing cycles.
• An integrated encoder and virtual encoder system continuously monitors gate movement,
• providing optimal torque control and advanced anti-crushing protection.
• Unlike residential motors, the BENINCA BULL20T is designed for continuous and intensive operation.
• The self-ventilated motor design improves heat dissipation,
• making it suitable for high-frequency usage in harsh UAE climate conditions.
• The external control unit allows flexible system configuration and easy integration with access control systems,
• safety devices, and industrial automation setups.
• With its robust construction, grease-lubricated gearbox, and optional steel anti-vandal protective cover,
• the BULL20T is an ideal choice for sites requiring durability, security, and consistent performance.

Key Features – BENINCA BULL20T

• Industrial sliding gate motor for up to 2000 kg
• 400 Vac three-phase motor for intensive use
• External control unit for flexible installation
• Electronic braking for precise gate stopping
• Encoder & virtual encoder for safety and accuracy
• Self-ventilated motor for high-frequency operation
• Grease-lubricated gearbox for long service life
• Optional steel anti-vandal protective cover
• Suitable for harsh outdoor environments
• Technical Specifications – BENINCA BULL20T

Specification Details

• Motor Supply 400 Vac Three-Phase
• Maximum Gate Weight 2000 kg
• Maximum Thrust 2000 N
• Opening Speed 10.5 m/min
• Duty Cycle Intensive Use
• Protection Level IP44
• Control Unit External
• Integrated Receiver No
• Encoder Yes
• Virtual Encoder Yes
• Magnetic Limit Switches Yes
• Pinion M4 Z18
• Lubrication Grease
• Operating Temperature –20 °C to +50 °C
• Motor Weight 21.3 kg

Typical Applications

• Industrial factories & plants
• Warehouses & logistics centers
• Commercial compounds
• Service yards & loading bays
• High-traffic gated entrances
• Infrastructure & utility facilities

Why Choose BENINCA BULL20T in UAE?

• Italian-engineered industrial reliability
• Designed for intensive, high-frequency use
• Accurate movement with encoder & electronic braking
• Compatible with industrial access control systems
• Strong performance in extreme UAE weather conditions
• Ideal for heavy sliding gates up to 2000 kg
