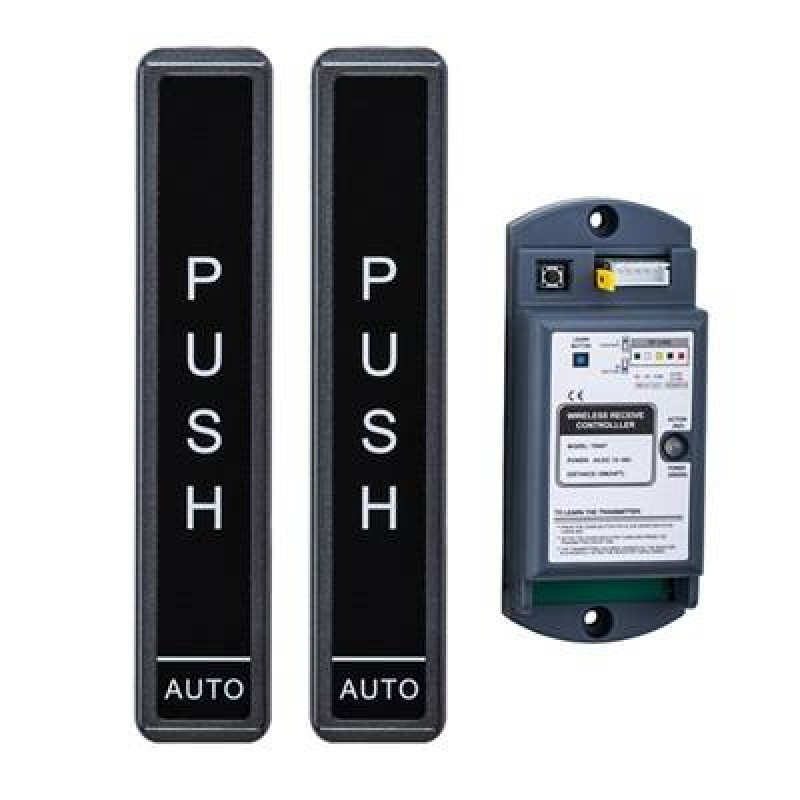

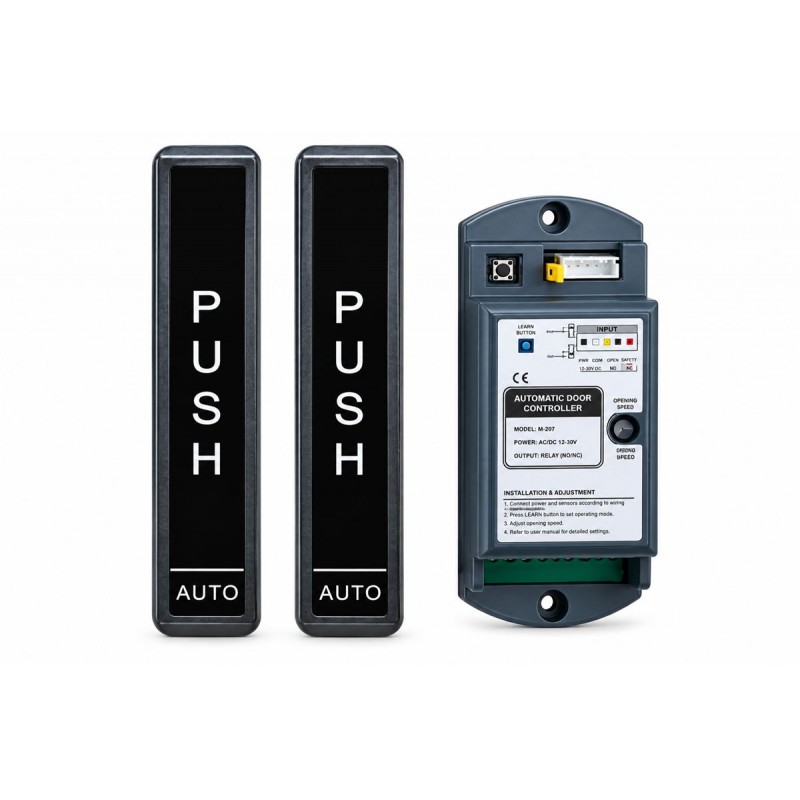

Wireless Hand Press Switch for Automatic Doors & Access Control Systems
The Wireless Push Button Switch for Automatic Door Openers is a reliable and convenient wireless activation device designed for automatic doors, electric locks, access control systems, and door automation applications. Operating on a stable 315MHz wireless frequency, this hand press switch provides fast and secure signal transmission, making it ideal for commercial buildings, hospitals, offices, banks, hotels, shopping malls, and public facilities across Dubai, Sharjah, Abu Dhabi, and throughout the UAE.
Featuring a modern PU varnished housing with anti-tamper screw protection, the wireless push switch offers excellent durability and a professional appearance. Its low-power design ensures long battery life while maintaining reliable operation and consistent performance.
The switch activates the automatic door within 2 seconds after signal reception and supports a wide input voltage range, making it compatible with most automatic door operators, electric locks, access control systems, and automation controllers.
Main Features
- Wireless hand press push button switch
- Designed for automatic door opener systems
- Stable 315MHz wireless transmission
- Fast response and reliable signal reception
- Long battery life with low power consumption
- Modern anti-tamper design
- Voice operation indicator
- Power status LED indicator
- Suitable for electric locks and access control systems
- Wide voltage input support
Technical Specifications
- Product Type: Wireless Push Button Switch
- Operating Frequency: 315MHz
- Power Supply: AC/DC 12V–24V
- Input Voltage Range: AC/DC 12V–36V
- Quiescent Current: 15mA
- Operating Current: 80mA (DC12V)
- Main Contact Capacity: 20A / 14VDC
- Contact Holding Time: 2 Seconds
- Emission Current: 3.9mA
- Working Temperature: -42°C to +45°C
- Humidity Range: 10–90% RH
- Dimensions: 203mm × 40.5mm × 12mm
Applications
- Automatic Swing Doors
- Automatic Sliding Doors
- Electric Locks
- Access Control Systems
- Hospitals and Clinics
- Office Buildings
- Hotels and Restaurants
- Shopping Centers
- Banks and Financial Institutions
- Commercial Buildings
Key Advantages
- Wireless operation without additional wiring
- Quick door activation within 2 seconds
- Reliable and stable wireless communication
- Low power consumption
- Long battery life
- Easy installation and maintenance
- Compatible with most automatic door systems
- Suitable for indoor commercial environments
Package Includes
- 1 × Wireless Push Button Switch
- 1 × Wireless Receiver Module
- Mounting Accessories
- User Manual
Why Choose This Wireless Push Button Switch?
- Reliable wireless operation
- Compatible with automatic doors and access control systems
- Professional commercial-grade design
- Fast response and signal stability
- Low maintenance requirements
- Easy installation
- Suitable for UAE commercial environments
- Ideal for modern automatic door systems
Frequently Asked Questions
What systems is this wireless push button compatible with?
It is compatible with automatic door operators, electric locks, access control systems, and automation controllers.
What is the operating frequency?
The switch operates on a stable 315MHz wireless frequency.
How quickly does the door activate?
The door opens within approximately 2 seconds after receiving the wireless signal.
Can it be used with access control systems?
Yes. It works with access control systems, electric locks, and automatic door controllers.
Is it suitable for commercial buildings?
Yes. It is ideal for offices, hospitals, hotels, banks, shopping malls, and commercial facilities.
