4 Door Network Access Control Panel UAE

TCP/IP RFID Access Control Controller for Four Door Security Systems

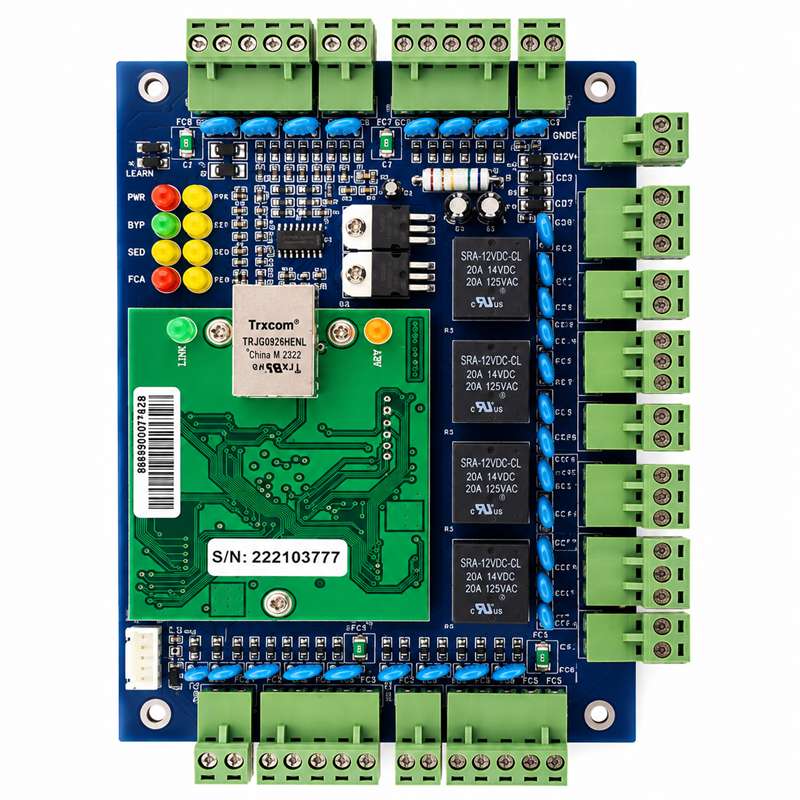

The ACB-004 4 Door Network Access Control Panel is a professional TCP/IP-based access controller designed for centralized management of multiple access points in commercial buildings, residential communities, offices, warehouses, factories, schools, hospitals, and industrial facilities throughout Dubai, Sharjah, Abu Dhabi, and across the UAE.

Featuring built-in TCP/IP communication, the ACB-004 supports APP control, 4G connectivity, web server management, and PC software operation. It provides real-time access monitoring, centralized user management, and advanced security control for up to four access-controlled doors.

Compatible with Wiegand 26 RFID readers, the controller enables secure card-based access management while offering flexible integration with attendance systems, building management systems, security platforms, and custom applications through SDK support.

With low power consumption, adjustable door opening times, and professional-grade network communication, the ACB-004 is an ideal solution for medium to large-scale access control installations requiring reliable and scalable security management.

Key Features

• Controls up to 4 access-controlled doors
• Built-in TCP/IP network communication
• Supports mobile APP management
• Web server access and remote monitoring
• 4G connectivity support
• Compatible with Wiegand 26 RFID readers
• SDK support for software integration
• Free access control management software
• Adjustable door opening time settings
• Low power consumption design

Technical Specifications

• Model: ACB-004
• Controller Type: Four Door Network Access Controller
• Communication: TCP/IP 10M/100M Adaptive
• Power Supply: DC12V 4–7A
• Circuit Board Power Consumption: Less than 100mA
• Reader Interface: Wiegand 26
• Doors Controlled: 4 Doors
• Door Opening Time: Adjustable from 1 to 600 Seconds

Physical Specifications

• PCB Board Size: 160 × 106 mm
• Metal Cabinet Size: 273 × 228 × 65 mm
• Professional Security Enclosure
• Wall Mounted Installation

Communication Features

• TCP/IP Ethernet Communication
• 10M/100M Adaptive Network
• Remote Web-Based Management
• Mobile Application Access
• 4G Remote Connectivity
• SDK Development Integration

Access Control Functions

• Four Door Access Management
• RFID Card Authentication
• Entry and Exit Reader Support
• Real-Time Event Monitoring
• Adjustable Unlock Time
• Centralized User Database
• Access Permissions Management

Applications

• Commercial Office Buildings
• Residential Communities
• Apartment Complexes
• Warehouses and Logistics Centers
• Factories and Industrial Facilities
• Hospitals and Healthcare Centers
• Schools and Universities
• Government Buildings
• Data Centers and Server Rooms
• Multi-Door Security Installations

Benefits

• Manage four doors from a single controller
• Centralized access management
• Remote monitoring and control
• Scalable network security solution
• Easy integration with RFID readers
• Reliable TCP/IP communication
• Low operating costs
• Suitable for UAE commercial and industrial projects

Package Includes

• 1 × ACB-004 Four Door Access Control Panel
• Metal Enclosure
• Installation Accessories
• User Manual
• Software Support Information

Why Choose the ACB-004 Access Controller?

• Controls up to four doors simultaneously
• Built-in TCP/IP networking
• Mobile app and web server management
• Wiegand 26 RFID compatibility
• SDK support for custom integrations
• Professional industrial-grade reliability
• Suitable for large access control projects
• Professional support available across UAE

Frequently Asked Questions

How many doors can the ACB-004 manage?

The controller can manage up to four access-controlled doors from a single network panel.

Which RFID readers are supported?

The ACB-004 supports Wiegand 26 compatible RFID readers.

Can the system be managed remotely?

Yes. The controller supports TCP/IP networking, mobile app control, web server management, and 4G connectivity.

Is software included?

Yes. Free access control management software and SDK support are available for configuration and integration.

Is it suitable for commercial and industrial projects?

Yes. The ACB-004 is ideal for offices, factories, warehouses, residential communities, hospitals, schools, and large security installations throughout the UAE.
